Audison Forza 8 kanals forstærker med sound processor - 8x100w

7.499,00 kr.
Inkl. moms
Antal
Klar til afsendelse fra fjernlager

AUDISON FORZA, THE NEXT LEVEL OF OEM INTEGRATION AND TUNING

  • More Power
  • More Information
  • More Control
  • More Inputs
  • More Speed
  • More Tools
  • More Capabilities
  • More Guidance
  • More Flexibility

all in one state-of-the-art platform!

AUDIOPHILE SOUND YOU EXPECT FROM AUDISON

AF C8.14 bit boasts eight high-fidelity amplified channels 65W x 8 @4Ω*, 100W x 8 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 200W x 4 @4Ω*, guaranteeing flexible and powerful performance. Support for the Audison B-CON’s Absolute Volume function guarantees maximum bit depth, even with wireless connections!

*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.

NEXT-GENERATION TUNING CAPABILITIES FOR MAXIMUM CONTROL

Audison’s completely-new bit Drive PC software can analyze, route, and correct the signal in completely new ways – now you can measure, mix, and finally tune the sound with one powerful tool! The new Graphical User Interface simplifies every control and function, integrating acoustic measurement, and ensuring efficient tuning and great sound! The Acoustic RTA is integrated into the equalizer graph, and is compatible with your USB microphone or sound card. The Final EQ function allows final equalization without damaging the delicate left/right frequency relationships. The six processed preamp outputs are in addition to the eight amplified channels, allowing Forza’s DSP section to manage a larger system easily.

ADVANCED OEM INTEGRATION CAPABILITIES

Forza’s eight analog inputs, plus an optical Toslink digital input, support total connectivity even with the most complex OEM systems.  If more analog inputs are required, the optional F4IN expansion card adds four additional analog input channels! If a Coaxial SPDIF or a second Toslink SPDIF input is needed, the optional F2O expansion card can be used. Audison’s classic de-EQ process is joined by de-Time and de-Phase capabilities, enabling sound restoration in nearly every OEM system., The electrical signal analysis ensures proper integration and correction for each input and output channel. The built-in universal speaker simulation technology (USS) yields maximum compatibility with any OEM Source, without muting or instability.

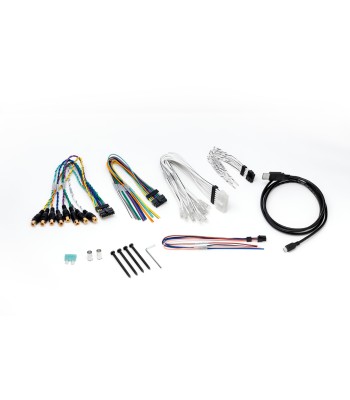

AF C8.14 bit includes a set of four high-quality cables supplied with a protective printed strip placed upstream of the Molex connectors to increase the resistance to torsion:

  1. One 8 stereo RCAs interconnection for after-market sources with PRE-OUT outputs
  2. One featuring 8 pairs of labeled cables for the connection to high-level output OEM sources
  3. One includes eight pairs of labeled cables to connect the speakers to the amplifier
  4. One Control interconnection to control memory selection and remote power-on.

Technical Specification



POWER SUPPLY

Nominal power supply voltage / fuse:

11 ÷ 15 VDC / 1 x 35A

Pulse operating voltage:

6.5 ÷ 17.5 VDC

Idling current:

1.3 A

Standby current draw:

1.5 mA

Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power):

34 A

Remote IN:

4 ÷15 VDC (1 mA)

Remote OUT:

6.5 ÷15 VDC (150 mA)

ART – Automatic Remote Turn on/off from Speaker-In

1.5 VDC

Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels:

81%


AMPLIFIER STAGE

Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power:

0.05%

Damping factor @ 1 kHz , 4Ω, 2 VRMS:

85

Bandwidth @ -3 dB:

10 Hz ÷ 42 kHz

S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input:

98.5 dBA

S/N ratio (A weighted @ Rated Power) Optical Input:

105 dBA

Minimum load impedance:

8Ch: 2Ω

4Ch – (Bridge 1/2; 3/4; 5/6; 7/8): 4Ω

Output Continuous Power (RMS) @14.4 VDC, 1% THD:

• 8 Ch @ 4Ω:

65 W x 8

• 8 Ch @ 2Ω:

100 W x 8

• 4Ch (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω:

200 W x 4


CEA SPECIFICATIONS

Output power @ 4Ω, 1% THD+N, 14.4 V:

55 W x 8

SN ratio (ref. 1 W output):

80 dB


INPUTS / OUTPUTS

Pre-In (8 Ch):

0.6 ÷ 6 VRMS (15 kΩ Imp.)

Speaker-In (8 Ch + additional 4 Ch with optional F4IN card):

2.2 ÷ 22 VRMS (5 Ω Imp.)

Digital IN:

1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card

DSP Preout (6 Ch):

5V RMS


DIGITAL SIGNAL PROCESSOR

Audio DSP and converters:

Analog Devices ADAU1467 automotive qualified audio processor.

Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance

Filter type:

Full / High-Pass / Low-Pass / Band-Pass

Filter mode and slope:

Linkwitz-Riley @ 12/24/36/48 dB/Oct.


Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.


Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.


Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.


QLP @ 6 dB/Oct.

Crossover frequency:

20 Hz ÷ 20 kHz

Phase control:

0° / 180°, All-Pass filters

Analog Input Equalizer (20 Hz ÷ 20 kHz):

12 Biquad + Delay

Output Equalizer:

Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz

Input and Output Real-Time Audio Monitor:

RTA

Time Alignment Distance:

0 ÷ 510 cm / 0 ÷ 200.8 inches

Time Alignment Delay:

0 ÷ 15 ms


CONTROL CONNECTIONS

Audison DRCC port:

Input for DRCC remote control (Optional)

Audison ADC port:

Manage other Audison devices that support this standard

Control 1 wire:

Customizable functions (+ 12 V activated)

Control 2 wire:

Customizable functions (+ 12 V activated)


GENERAL REQUIREMENTS

PC connections:

Micro USB 1.1 / 2.0 / 3.0 Compatible

Software/ PC requirements:

Windows 10, Windows 11 (min. res. 1024 x 768

Ambient operating temperature range:

0 °C to 55 °C (32 °F to 131 °F)


SIZE / WEIGHT

Max size W x H x D (mm/inch):

200 x 47 x 134 / 7.87 x 1.85 x 5.27

Weight (kg/lb):

1.49 / 3.28
Audison
AFC8.14BIT
