Palmer Active / Passive Studio Monitor Controller

1.619,00 kr.
Inkl. moms

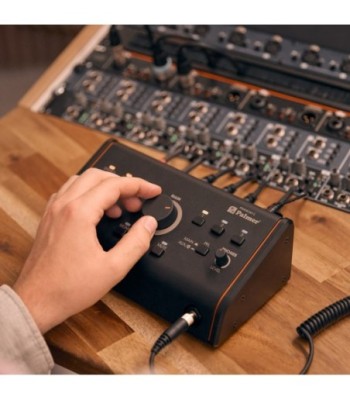

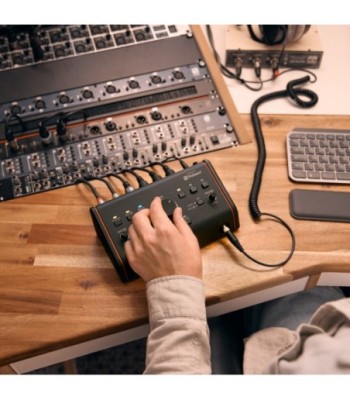

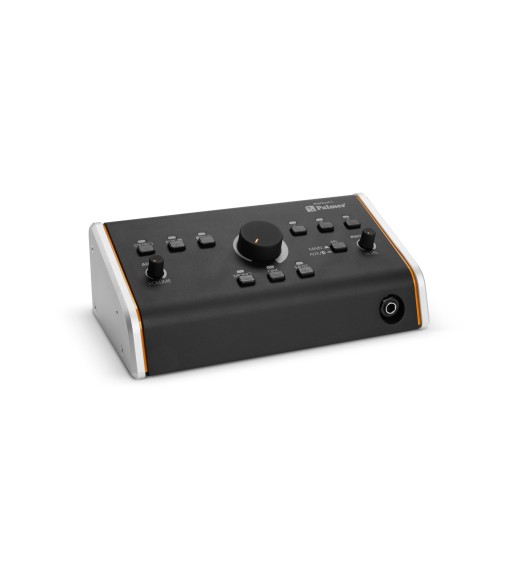

The MONICON L is a versatile, compact studio monitor controller for professional project studios and ambitious home set-ups. It features three inputs for different signal sources: balanced via XLR/TRS combo sockets as well as AUX and Bluetooth for mobile or digital devices. The inputs and outputs can be switched on/off via dedicated buttons with LED status display.

Two stereo outputs and an additional mono output allow flexible control of the speakers, for example, for main monitors, nearfield systems, or subwoofers. The large analogue volume control allows precise control of the output level.

Functions such as “Mono,” “Dim,” and “Mute” support practical monitoring conditions and facilitate quick adjustments in everyday studio life.

With its own volume control and PFL function, a separate headphone output allows isolated pre-listening to input signals without affecting the main mix.

The integrated power supply provides power to the Bluetooth, the headphone amplifier, and output three. The signal path itself stays entirely analogue, which makes latency-free and pristine audio playback possible. MONICON L stands for reliable signal management, transparent sound control, and intuitive operation.


Antal
Klar til afsendelse fra fjernlager

  • Inputs: 3× Stereo (balanced XLR/TRS Combo, AUX and Bluetooth)
  • Outputs: 2× Stereo, 1× Mono outputs (balanced XLR)
  • Latency-free analogue audio signal path
  • Supports both passive and active operation
  • Large precision volume control
  • AUX/Bluetooth input with dedicated volume control
  • Stereo Phones output with independent volume control
  • Input and output source selectors with Status LEDs
  • Dedicated switches for MONO, DIM, MUTE and PFL source
  • Robust and ergonomic desktop housing
  • Engineered in Germany

General

Type (active/passive)Passive
MaterialAluminium
MaterialSteel sheet
CoatingPowder coated
Frequency response (±0.2 dB, rel. Avg)20 - 20,000 Hz
ColourSilver

Inputs

Input signal typeBalanced & Unbalanced (parallel)
Number of balanced line inputs2
Balanced Line-In connector typeXLR combo socket
Number of unbalanced line inputs2
Unbalanced Line-In connector type2 x RCA female (Stereo)
Unbalanced Line-In connector type3.5 mm Jack TRS female

Line input performance

Nom. input clipping, balanced (< 1% THD, 1 kHz, unity)20 dBu
Nom. input clipping, unbalanced (< 1% THD, 1 kHz, unity)15 dBu
Input impedance (balanced)20 kΩ
Input impedance (unbalanced)10 kΩ
THD+N≤ 0.001 % (+4 dBu)
Frequency response (±0.5 dB, rel. Avg, unity)20 - 20,000 Hz
Min. CMRR (0 dB below clip, 1 kHz, unity)55 dB
Min. SNR (< 1% THD, 1 kHz, unity, A-weighted)112 dB

Outputs

Output signal typeBalanced
Output signal typeHeadphone
Number of balanced line outputs5
Balanced line outputs connector typeXLR 3-pole male
Number of Headphone outs1
Headphone out connector type6.3 mm Jack TRS female
Min. headphone impedance10 Ω
Max. headphone out power100 mW

Line output performance

Max. output level (<1 % THD, 20 Hz - 20 kHz)20 dBu
Balanced output impedance (1 kHz)600 Ω
Dynamic range (AES17)> 115 dB

Mains operation

Power supply typeExternal switched-mode power supply (SMPS)

Environmental

Ambient temperature0 - 40 °C
Maximum air humidity (non-condensing)80 %

Dimensions & weight

Width218 mm
Height76 mm
Depth124 mm
Weight910 g
Crosstalk-79 dB
Palmer
PMONICONLG2G
