Palmer Passive Studio Volume Controller

729,00 kr.
Inkl. moms

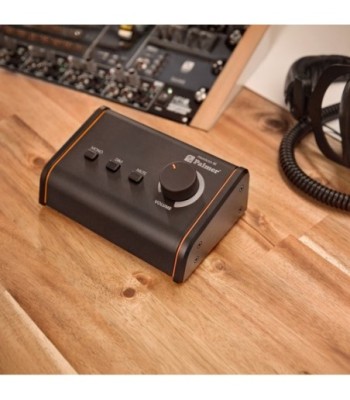

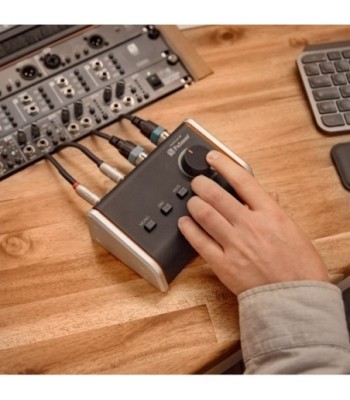

The MONICON M is a compact passive volume controller for flexible studio set-ups. It can be easily connected to audio interfaces, computers, or mobile devices, either via balanced XLR/TRS combo sockets or a 3.5 mm jack input. The output, which is either balanced via XLR or 3.5 mm jack sockets, helps supports both professional studio monitors and compact loudspeaker systems.

The large analogue volume control makes it possible to precisely control the level of volume without any loss in quality. The signal flow and monitoring situation can be adjusted quickly and intuitively using the “Mono,” “Dim,” and “Mute” buttons.

Thanks to the completely analogue signal path, the sound remains unaltered and latency-free. The MONICON M is the perfect control centre for project studios, editing suites, and multimedia workstations – wherever direct access and precise control are required.


Antal
Klar til afsendelse fra fjernlager

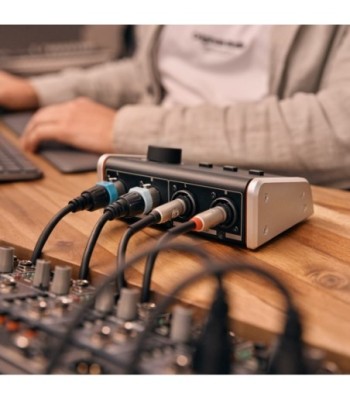

  • Input: 1x Stereo (balanced XLR/TRS Combo and 3.5 mm jack)
  • Output: 1x Stereo (balanced XLR and 3.5 mm jack)
  • Large precision volume control
  • Dedicated switches for MONO, DIM and MUTE
  • Compact format for project studios and multimedia setups
  • Latency-free analogue audio signal path
  • Engineered in Germany

General

Type (active/passive)Passive
MaterialAluminium
MaterialSteel sheet
Frequency response (±0.2 dB, rel. Avg)20 - 20,000 Hz
ColourBlack

Inputs

Number of balanced line inputs2
Balanced Line-In connector typeXLR combo socket
Number of unbalanced line inputs1
Unbalanced Line-In connector type3.5 mm Jack TRS

Line input performance

Input impedance (balanced)20 kΩ
Input impedance (unbalanced)10 kΩ
Min. SNR (< 1% THD, 1 kHz, unity, A-weighted)112 dB

Outputs

Number of unbalanced line outputs1
Unbalanced line outputs connector type3.5 mm Jack TRS female
Number of balanced line outputs2
Balanced line outputs connector typeXLR 3-pole male

Line output performance

Max. output level (<1 % THD, 20 Hz - 20 kHz)20 dBu
Dynamic range (AES17)> 115 dB

Environmental

Ambient temperature0 - 40 °C
Maximum air humidity (non-condensing)80 %

Dimensions & weight

Width160 mm
Height62 mm
Depth106 mm
Weight480 g
Crosstalk-79 dB
Palmer
PMONICONMG2
