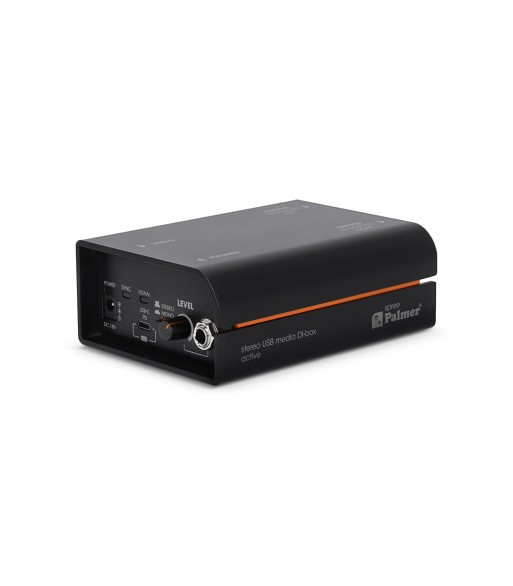

Palmer Active stereo USB-C media DI box

2.109,00 kr.
Inkl. moms

USB-C to studio and stage.

Feed audio from a laptop, smartphone or tablet directly into a mixer, stagebox or PA system. The Palmer SPREE is an active stereo USB-C media DI box designed exactly for this application.

It converts USB-C audio into two balanced XLR signals for direct integration into professional audio setups. D/A conversion with up to 32-bit / 192 kHz ensures high-resolution signal conversion, while the galvanically isolated XLR outputs help prevent hum and unwanted interference. A switchable Mic / Line output level allows easy matching to different input stages, and the ground-lift switch provides additional noise control in demanding environments. A 6.3 mm TRS headphone output allows direct monitoring or can be used as an additional signal output. Status LEDs for SIGNAL, SYNC and POWER provide quick visual confirmation during setup and operation.

The SPREE can be powered either via USB-C or via the included external power supply. When the external power supply is used, USB-C power pass-through allows the connected device to be powered at the same time. This is particularly useful for setups with smartphones or tablets.

With its robust metal housing, the Palmer SPREE is ready for touring and stage use. Engineered in Germany.


Antal
Klar til afsendelse fra fjernlager

  • Converts USB-C audio to balanced XLR signals
  • D/A conversion with 32-bit/192 kHz
  • Galvanically isolated XLR outputs
  • Switchable output level: Mic / Line
  • Ground-lift switch
  • Optimal impedance matching for lossless, linear sound transmission
  • 1 × USB-C audio port with bidirectional power supply
  • 2 × XLR outputs, balanced (L/R)
  • 1 × 6.3mm TRS headphone output
  • Power supply via USB-C cable or power adapter (both included)
  • USB-C power pass-through when using the power adapter
  • Status LEDs: SIGNAL, SYNC & POWER
  • Metal housing for touring and stage applications
  • Designed as a robust alternative to repurposed recording interfaces
  • Engineered in Germany

General

Type (active/passive)Active
Included AccessoriesExternal power supply
Included AccessoriesRubber feet
Included AccessoriesTour label
Included AccessoriesUSB-C to USB-C cable
MaterialAluminium
MaterialSteel
CoatingPowder coated
Isolated transformerYes
Transformer Ratio1:1
Ground LiftYes
Frequency response (±0.5 dB, rel. Avg)20 - 20,000 Hz
Number of inputs1
Number of outputs2
ColourBlack
Number of channels2

Inputs

Input signal typeUSB
Input connector typesUSB-C socket female

Outputs

Output signal typeBalanced
Output signal typeHeadphone
Number of line outputs2
Line outputs connector typeXLR 3-pole male
Number of Headphone outs1
Headphone out connector type6.3 mm Jack TRS female

Line output performance

Max. output level (<1 % THD, 20 Hz - 20 kHz)18 dBu
Balanced output impedance (1 kHz)600 Ω

Signal processing

Min. Signal-to-noise ratio (SNR)112 dB
Max. THD+N (1 kHz, +4 dBu, unity, unweighted)0.015 %
Max. THD+N (30 Hz, +4 dBu, unity, unweighted)0.015 %
Max. IMD (SMPTE, 60 Hz, 4:1, +4 dBu)0.001 %

Mains operation

Operation voltage18 V DC (external power supply)
Operation voltageUSB bus powered (5 V DC / 1 A)
Rated power5 W

Housing

Cabinet materialAluminium
Cabinet materialSteel
CoatingPowder coated
ColourBlack

Environmental

Ambient temperature-10 - 70 °C
Maximum air humidity (non-condensing)80 %

Dimensions & weight

Width140 mm
Height50 mm
Depth128 mm
Weight575 g
Palmer
PSPREE
