Palmer Passive Monitor Controller

1.719,00 kr.
Inkl. moms
MONICON® L

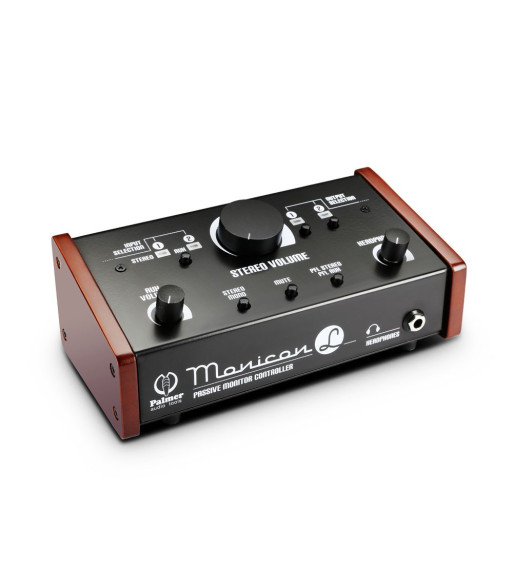

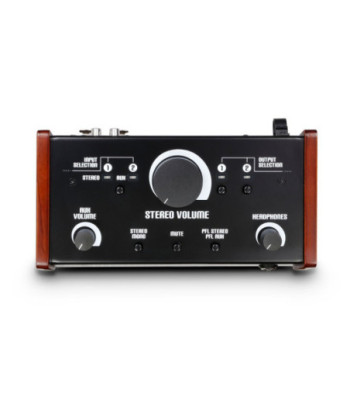

The Palmer Monicon® L is a precise, analogue volume control that connects between a computer or audio interface and active monitor speakers. The switch is completely passive and distortion-free, the LED displays and built-in headphone amplifier are powered via the included power supply.

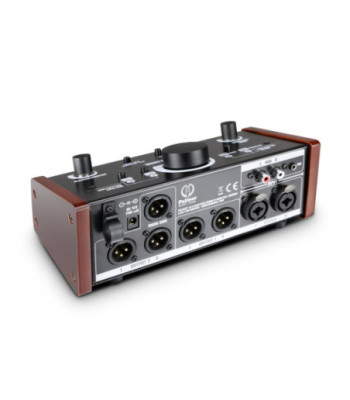

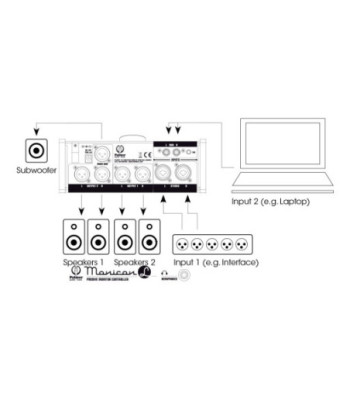

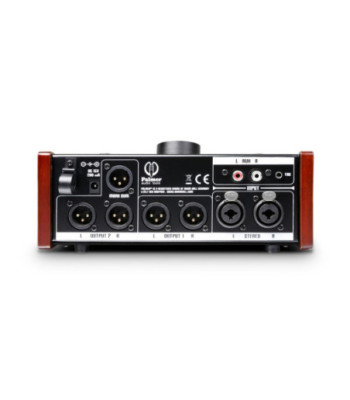

Symmetric combo sockets serve as stereo input. The Monicon® L_s AUX input features RCA sockets and a 3.5 mm stereo jack. The compact console offers outputs for two monitor pairs and a mono summed output via XLR sockets. The stereo or AUX input can be selected alternately, the two outputs individually and together. In addition to its large volume controller, the Monicon® L is also equipped with mono, mute and PFL switches, a 6.35 mm headphone output, and separate AUX and headphone controllers for convenient operation.

Antal
Klar til afsendelse fra fjernlager

  • All-passive volume control circuit
  • Stereo and AUX inputs
  • Dual outputs
  • Additional mono output
  • Balanced and unbalanced connection
  • Integrated high quality headphone amplifier
  • Mono, mute and PFL switches
  • Stereo volume, AUX and headphone level controls
  • Elegant design with solid wood side panels
  • Built to last

Product typeOther Studio and Recording Equipment
Channels2
Inputs2
Input connectors3.5 mm TRS
Input connectorsRCA
Input connectorsXLR
Input typebalanced/unbalanced (depending on TS/TRS connection)
Max. input level20 dBu
Input impedance(balanced) 10k Ohm(s)
Input impedance(unbalanced) 5k Ohm(s)
Outputs3
Output connectorsXLR
Output typebalanced/unbalanced (depending on TS/TRS connection)
Max. output level20 dBu
Output impedance600 Ohm(s)
Frequency response10 - 40000
Total Harmonic Distortion (THD)0.001 %
Max. attenuation(Attenuator + Mute) 112
Max. attenuation(Attenuator) 85
Controlsattenuation
Controlsinput selector
Controlsmono
Controlsmute
Controlsoutput selector
ControlsPFL source
Cabinet materialsheet steel
Cabinet materialwood
Cabinet surfacePowder coated
Width218 mm
Height77 mm
Depth100 mm
Weight1,14 kg
Palmer
PMONICONL
