LD Systems Compact active PA system white

4.379,00 kr.
Inkl. moms
DAVE 8 XS W

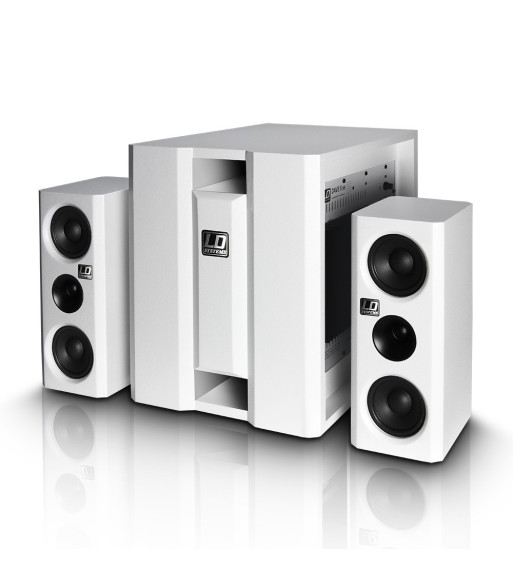

The new LD Systems DAVE8 XS W is a portable 2.1 multimedia system with a high-performance 8" band pass subwoofer and two satellites (each 4" + 1", with silk dome).

The system provides crystal-clear sound and was specifically designed for multimedia applications such as home PA or gaming; it is also suitable as a monitor for DJs or keyboardists or as a music system for smaller venues such as bars and cafés. The high-performance A/B amplifier built into the subwoofer provides for both the subwoofer and the satellites. The multimedia system LD DAVE8 XS W has line inputs in XLR and RCA format and is equipped with all standard protections. The built-in limiter keeps the system safe from overload and ensures a long service life. On the side of the subwoofer, in addition to an ON/OFF switch and a phase reverse switch (180°), there is a separate subwoofer volume knob that allows you to find the perfect mix of brilliant treble, punchy mids, and powerful bass.

From serial number 130818000001, the satellite speakers are equipped with a 16 mm flange and are therefore compatible with the speaker stands from LDDAVE8SET2. The front grille is included in delivery

Antal
Klar til afsendelse fra fjernlager

Weight29 kg
Product typePA Complete Systems
Colorwhite
Max. SPL (continuous)117 dB
Frequency response45 - 19000
Dispersion (H x V)60 x 60 °

Subwoofer

Low/mid Woofer dimensions8 "
Woofer dimensions (mm)203.2 mm
Woofer magnetFerrite
Woofer brandCustom-made
Cabinet constructionBandpass
Cabinet material15 mm MDF
Cabinet surfacetexture paint
Subwoofer width352 mm
Subwoofer height430 mm
Subwoofer depth434 mm

Mid/Hi System

Midrange dimensions2 x 4 "
Midrange dimensions (mm)2 x 101.6 mm
Midrange magnetFerrite
Midrange brandCustom-made
Tweeter dimensions1 "
Tweeter dimensions (mm)25.4 mm
Tweeter magnetFerrite
Tweeter brandCustom-made
Mid/Hi system impedance4 Ohm(s)
Loudspeaker inputs1
Speaker input connectionsSpeakon compatible
Cabinet construction mid/highClosed
Mid/Hi system cabinet material12 mm MDF
Mid/Hi system cabinet surfacetexture paint
Mid/Hi system width144 mm
Mid/Hi system height350 mm
Mid/Hi system depth170 mm
Mid/Hi system features16 mm flange
Mid/Hi system features2 x M6 mounting points for wall mounting
Mid/Hi system featuresGrilles for satellites included

Amplifier module (integrated in subwoofer)

AmplifierClass A/B
Amplifier output system (RMS)350 W
Amplifier output system (peak)1400 W
Protection circuitslimiter
Protection circuitsoverload
Protection circuitsShort circuit
CoolingAluminium heat sink
ControlsPower
ControlsSub level
ControlsSubwoofer Phase Reverse
Controlsvolume
IndicatorsPower
Power supplytransformer
Operating voltage220 V AC - 240 V AC, 50-60 Hz
Line inputs2
Line input connectors6.3 mm jack
Line input connectorsRCA
Line input connectorsXLR
Loudspeaker outputs2
Speaker output connectionsSpeakon compatible Left/Right
LD Systems
LDDAVE8XSW
