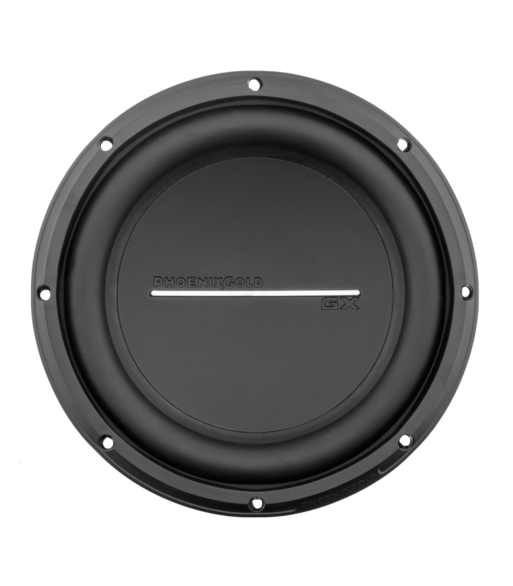

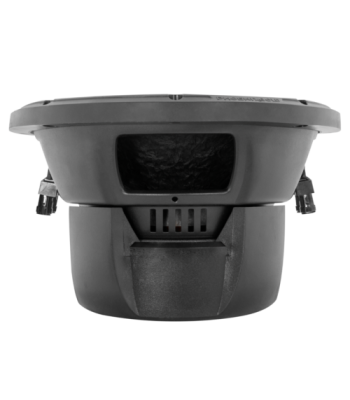

Phoenix gold GX 10" High Performance Dual 4-Ohm Subwoofer

1.259,00 kr.
Inkl. moms

GX subwoofers are engineered for heart pounding performance and a breathtaking sound experience. These subwoofers feature advanced MLB and CFL3 technologies. Pair GX subwoofers with the GX amplifiers and create an unbeatable combination of sound quality and dynamic performance.

Antal
Klar til afsendelse fra fjernlager

Specifikationer

Nominal Impedance

3.50 ohms

DC Resistance (Re)

7.00 ohms

Resonance Frequency (Fs)

27.53 Hz

Piston Area (Sd)

0.0314 m2

Force Factor (BL)

21.04 Tm

Mechanical Q Factor (Qms)

3.47

Electrical Q Factor (Qes)

0.30

Total Q Factor (Qts)

0.27

Sensitivity 1W/M (SPL)

86.78 dB

Mechanical Compliance (Cms)

0.31 mm/N

Moving Mass (Mms)

108.37 g

Linear Excursion (Xmax)

9 mm

Volume Acoustic Compliance (Vas)

42.50 Ltr

1.50 cu ft

Reference Efficiency (NO.)

0.29%

Nominal Power (Pe)

 400 Watts

Peak Power

800 Watts

Frequency Response

30-500 Hz

Voice Coil Diameter

2.5in/63.5mm

Displacement

0.07 cu ft/1.84 Ltr
Overall Diameter 10.43 in/265 mm

Cut Out Diameter

9.125 in/231.77 mm

Mounting Depth

5.47 in/139 mm
Phoenix Gold
GX10D4

Produktinformation

AutoStereo: Enhedstype
Bass enhed
AutoStereo: Diameter
265 mm
AutoStereo: RMS Power
400 W
AutoStereo: Følsomhed (dB)
85,8 dB
AutoStereo: Max Power
800 W
AutoStereo: Frekvens område
30 Hz - 500 Hz
AutoStereo: Impedans Ω
4 x 4 Ω
AutoStereo: Hul Mål
231,77 mm
AutoStereo: Montage Dybde
139 mm
AutoStereo: X-Max
9 mm
AutoStereo: Magnet Bredde
65 mm
