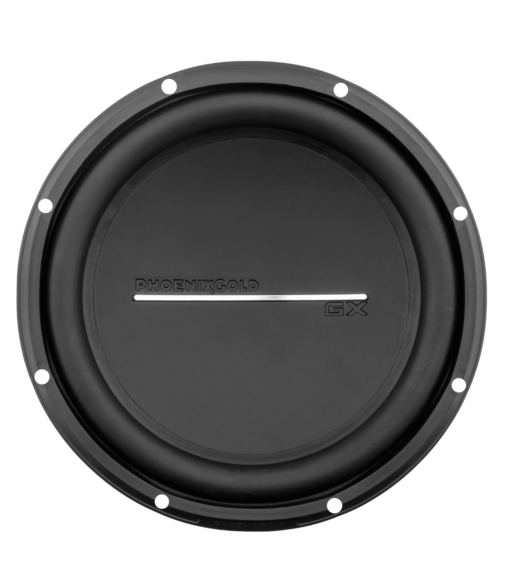

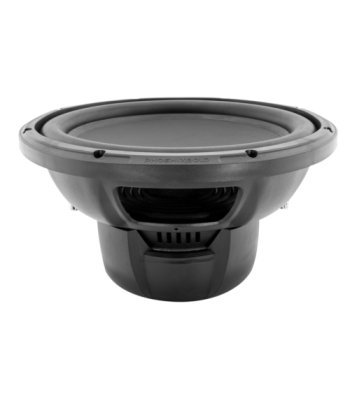

Phoenix gold GX 12" High Performance Dual 2-Ohm Subwoofer

1.399,00 kr.
Inkl. moms

GX subwoofers are engineered for heart pounding performance and a breathtaking sound experience. These subwoofers feature advanced MLB and CFL3 technologies. Pair GX subwoofers with the GX amplifiers and create an unbeatable combination of sound quality and dynamic performance.

Antal
Klar til afsendelse fra fjernlager

Specifikationer

Nominal Impedance

1.85 ohms

DC Resistance (Re)

3.70 ohms

Resonance Frequency

21.23 Hz

Piston Area (Sd)

0.0499 m2

Force Factor (BL)

17.35 Tm

Mechanical Q Factor (Qms)

3.63

Electrical Q Factor (Qes)

0.30

Total Q Factor (Qts)

0.27

Sensitivity 1W/M (SPL)

87.44 dB

Mechanical Compliance (Cms)

0.31 mm/N

Moving Mass (Mms)

180.89 g

Linear Excursion (Xmax)

9 mm

Volume Acoustic Compliance (Vas)

107.90 Ltr

3.81 cu ft

Reference Efficiency (NO.)

0.33%

Nominal Power (Pe)

 400 Watts

Peak Power

800 Watts

Frequency Response

30-500 Hz

Voice Coil Diameter

2.5 in/63.5 mm

Displacement

0.10 cu ft/2.72 Ltr
Overall Diameter 12.50 in/317.50 mm

Cut Out Diameter

11.25 in/285.75 mm

Mounting Depth

6.26 in/159 mm
Phoenix Gold
GX12D2

Produktinformation

AutoStereo: Enhedstype
Bass enhed
AutoStereo: Max Power
800 W
AutoStereo: RMS Power
400 W
AutoStereo: Følsomhed (dB)
87,44 dB
AutoStereo: Frekvens område
30 Hz - 500 Hz
AutoStereo: Impedans Ω
2 x 2 Ω
AutoStereo: Diameter
317,5 mm
AutoStereo: Hul Mål
285,75 mm
AutoStereo: Montage Dybde
159 mm
AutoStereo: Magnet Bredde
63,5 mm
AutoStereo: X-Max
9 mm
