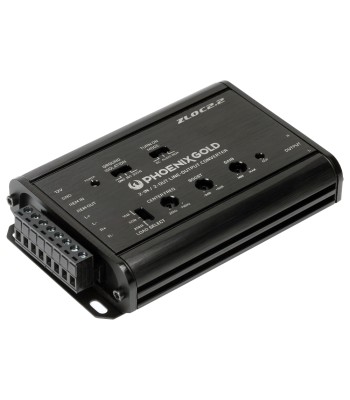

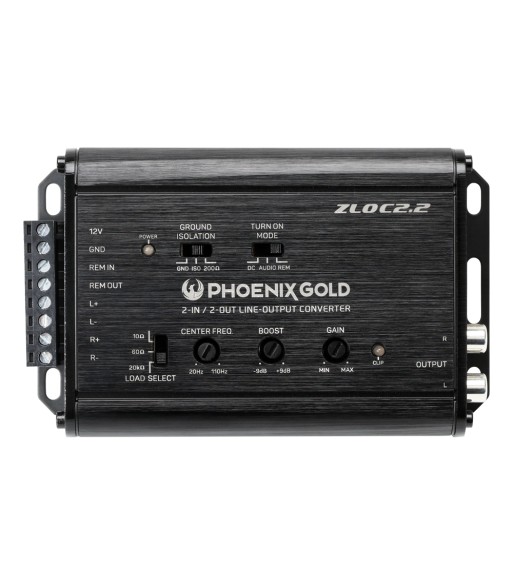

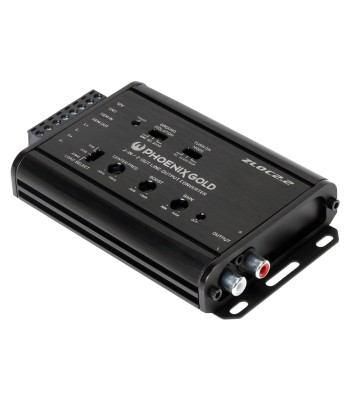

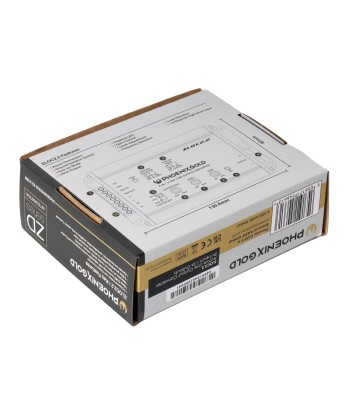

2 Channel ZLOC2.2 Converter

489,00 kr.
Inkl. moms
Antal
Klar til afsendelse fra fjernlager

2 Channel ZLOC2.2 Converter Specifications

Speaker Input:2CH

Outputs: 4CH

REM In: Yes

REM Out: Yes

Load Select: 10-Ohm / 60-Ohm / 20K-Ohm

Ground Isolation: GND/ISO/200-Ohm

Gain: Yes,X1

Clipping: Yes,X1

Center Frequency: 20Hz-110Hz

Bass Level: -9 ~ +9dB

Turn On Mode: REM/DC/AUDIO

Input Mode: 2CH

Remote: None

Dimensions: (LxWxH)mm 130.6x82x24.8mm

Chassis Body: Aluminum

Operating Voltage: 8 to 32V

Input Sensitivity: 0.5 to 32V

Output Voltage Max: 7.5V @ 14.4V

Max: 40V as Input Must be 20K-ohm load

Signal to Noise: >100dB @6.4V output

Input Impedance: 10-Ohm / 60-Ohm / 20K-Ohm

Frequency Response: 10-30kHz

THD+N: <0.01%

Output Impedance: <120-ohm

Max Current Draw: 120-150 mA

Turn-On Trigger: DC 3 to 7V

Gain: -28 to 0dB

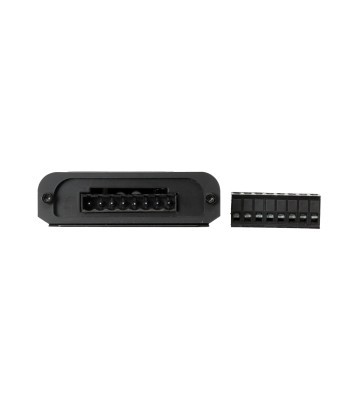

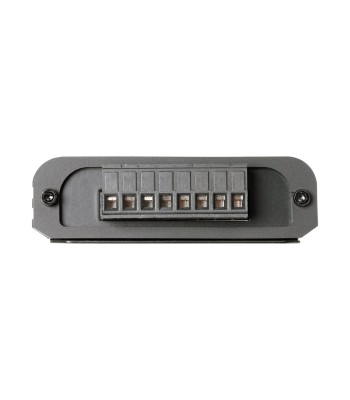

Terminal Gauge: Quick Connect / 16# AWG

Phoenix Gold
ZLOC2.2
