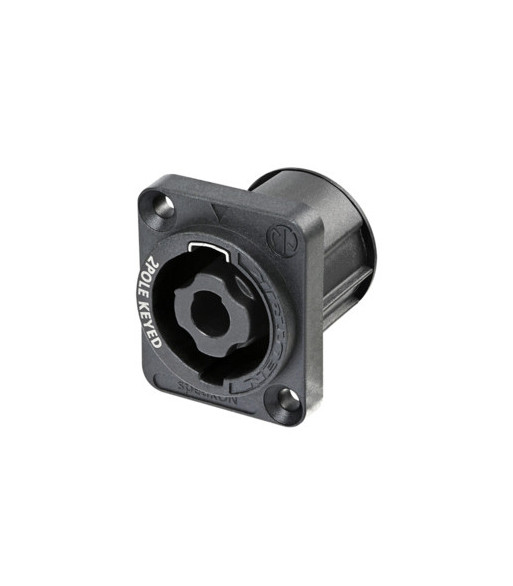

Neutrik speakON® chassis connector 2-pole male Neutrik®
search
  • Neutrik speakON® chassis connector 2-pole male Neutrik®

Neutrik speakON® chassis connector 2-pole male Neutrik®

39,00 kr.
Inkl. moms

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

2 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs. Does not intermate with the 4-pole cable connector.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Antal
Klar til afsendelse fra fjernlager

  • IEC 61984 certified > IEC 62368-1 compliant
  • Glass reinforced V-0 materials make it extremely robust and dependable
  • Precise keyway for secure mating
  • Accurate twist lock latching system
  • Metal insert in locking area
  • Airtight design - optimized for speaker applications

Product typePlugs and Connectors
TypeLoudspeaker Connectors
Poles2
Gendermale
Contactscopper
Connection typeFlat tabs
Housingpolyamide
Width26 mm
Height31 mm
Depth25.75 mm
Weight0,012 kg
NEUTRIK
NL2MPXXSB

Produktinformation

Farve
Sort
Kabel: Stik - start
Speakon - 2 pol - han
Kabel: Stik - slut
Løse ender
Kabel: Stik - Adapter
Plastik adaptor
