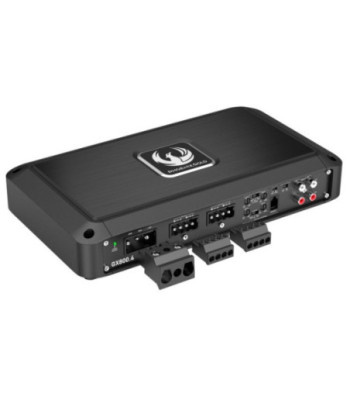

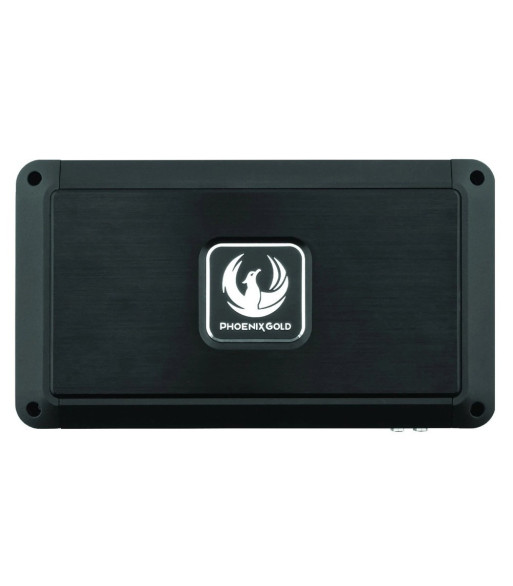

Phoenix gold GX 800W 4-Channel Full Range Class D Amplifier

3.499,00 kr.
Inkl. moms

Designed to cover a multitude of installation needs, GX is packed with the features and power you can expect from the Phoenix Gold brand. Included in the line are our proprietary PG quick connects for high current capability and reliability while delivering uber clean and quick installations. The chassis has been optimized by utilizing BFD (Balanced Flow Dissipation) to keep the amplifier running cool when the music is hot.

Antal
Klar til afsendelse fra fjernlager

Dimensions (L x W x H)
11.57_ x 6.5_ x 2.03_
294mm x 165mm x 51.5mm

Specifications

RMS Power Ratings listed at less than 1% THD @ 14.4v

Number of Channels: 4
    4_: CH 1 - 4 125W x 4
    2_: CH 1 - 4 200W x 4
    4_: Bridged 400W x 2
    2_: CH 5 400W x 1
    3CH Mode:  N/A
Total RMS Power (Sum of rated power): 800W
Bridgeable: Yes
Crossover Mode, Linkwitz-Riley: FULL/HP/LP
   40Hz - 500Hz @ 12dB / Oct
Input Selection 0.4-10V
Signal to Noise (@ CEA Standard): >100dB
Frequency Response: Full Range 10-40k
Topology Class: D
Heatsink Type: Extruded Aluminum
Cooling Type: Radiation
Operating Voltage: 8V to 16V
Switchable Auto-Turn On: No
Power Supply Type: Unregulated
Power Terminals: 4 Gauge Quick Connect
Speaker Terminal: 8 Gauge Quick Connect
Recommended Inline Fuse: 60A
Dimensions (L x W x H):

11.57_ x 6.5_ x 2.03_

294mm x 165mm x 51.5mm
Phoenix Gold
GX800.4
