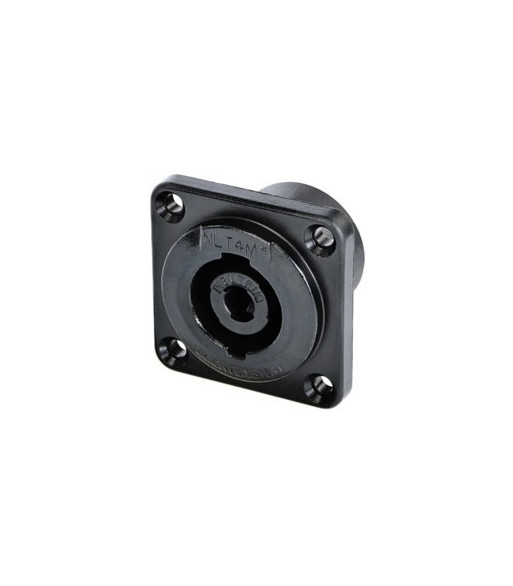

Neutrik speakON® chassis connector 4-pole male Neutrik®
search
  • Neutrik speakON® chassis connector 4-pole male Neutrik®

Neutrik speakON® chassis connector 4-pole male Neutrik®

109,00 kr.
Inkl. moms
NLT4MPXX

4 pole male chassis connector, metal housing, solder or ¼" flat tabs

The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.

Antal
Klar til afsendelse fra fjernlager

LOG IND! Forspørg om prismatch, TILBUD på en eller flere varer

account_circle Forbindelse
  • Extremely robust metal housing designed for harsh and demanding environment
  • Ideal product for touring applications and harsh environments
  • Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
  • Uses precise _Quick Lock_ system
  • Mates with all currently available speakON products
  • Weatherproof built-in gasket meets IP 54 protection class (4 pole)
  • 4 pole version has UL Recognized components, CSA listed
  • 4 type range - also male cable connector and female receptacle on 4-pole version
  • IEC 61984 certified IEC 62368/-1 compliant

Product typePlugs and Connectors
TypeLoudspeaker Connectors
Poles4
Gendermale
Contactscopper
Connection typeFlat tabs / solder contacts
Housingdie-cast zinc
Width38 mm
Height38 mm
Depth37 mm
Weight0,05 kg
NEUTRIK
NLT4MPXX

Produktinformation

Farve
Sort
Kabel: Stik - start
Speakon - 4 pol - han
Kabel: Stik - slut
Løse ender
Kabel: Stik - Adapter
Plastikrør

Specifikke referencer
