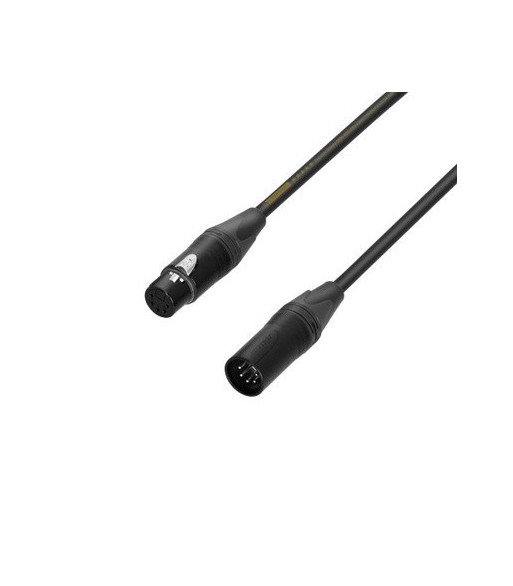

DMX Cable | Neutrik® XLR 5-pole without single packaging | 5 m
search
  • DMX Cable | Neutrik® XLR 5-pole without single packaging | 5 m

DMX Cable - Neutrik® XLR 5-pole without single packaging - 5 m

5.279,00 kr.
4.117,62 kr. Spar 22%
Inkl. moms

5 STAR DGH 0500 BULK VERSION

Analogue to the three-pole version, this data cable is equipped with five-pole connectors from Neutrik© and is thus perfectly suited for the transmission of DMX signals in lighting control.

Antal
Klar til afsendelse fra fjernlager

LOG IND! Forspørg om prismatch, TILBUD på en eller flere varer

account_circle Forbindelse
  • Version without sales packaging
  • The DMX, AES/EBU cables from our 5 STAR SERIES are manufactured in the EU
  • With black XLR connectors from Neutrik® manufactured in the EU
  • Optimum quality thanks to the silver-plated contacts of the connectors
  • The cable with 0.34 mm² (AWG22) inner conductor is very flexible yet robust thanks to its soft PVC sheathing
  • For professional use in the studio or on stage, with two transparent loose shrink sleeves for your own labeling

General

Cable length 5 m
Cable jacket PVC (Polyvinyl chloride)
Cable diameter 6.4 mm
Cable colour Black

Plugs

Connector type plug 1 XLR 5-pole female
Model name plug 1 Neutrik NC5FXX-BAG
Contact material plug 1 Silver plated
Connector type plug 2 XLR 5-pole male
Model name plug 2 Neutrik NC5MXX-BAG
Contact material plug 2 Silver plated

Line

Conductor material Oxygen-free copper (OFC)
Conductor diameter 2 x 0,34 mm²
Capacity/m 63 pF
Conductor impedance/km 53 Ohm/km
Characteristic impedance 110 _
Shield Spiral copper shielding

Dimensions & weight

Weight 370 g
Adam Hall Cables
K5DGH0500X

Produktinformation

Farve
Sort
Kabel: Længde
5.00 meter
Kabel: Stik - start
XLR - 5pol - hun
Kabel: Stik - slut
XLR - 5pol - han
Kabel: Type
Signalkabel: Audio // Mikrofon - Dobbelt skærmet
Kabel: Kvalitet
5 STAR
