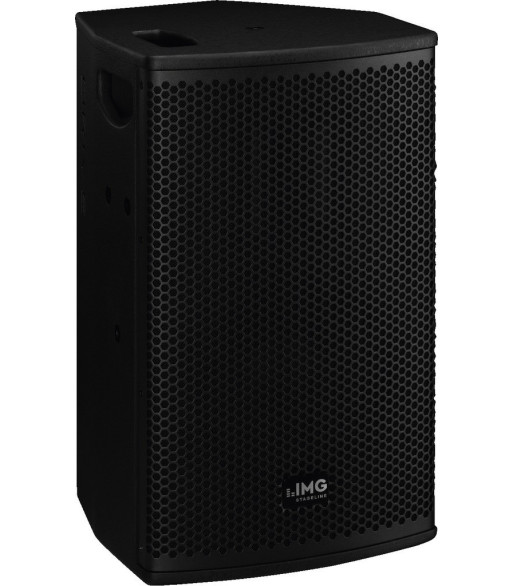

IMG STAGELINE PA-højttaler 300Wmax - DRIVE-08P

2.329,00 kr.
Inkl. moms
With the passive speaker systems of the DRIVE series,
you will get robust and easy-to-use PA speakers which are suitable for versatile applications. These robust and high-quality cabinets made of birch plywood are suitable for general use. The arrangement of the handles allow for easy manageability.
Professional PA speaker system, 300 W
  • Compact 8/2 fulll range system with cabinet made of birch plywood
  • 20 cm (8") bass speaker and 25 mm (1") horn tweeter, can be turned by 90°
  • Protective circuit for the tweeter
  • Excellent sound characteristics
  • High-quality coating and neat workmanship
  • Multi-purpose positioning and installation options
  • Horn tweeter with consistent radiation pattern
  • M8 threaded inserts for suspended installation
  • 2 x SPEAKER terminal IN/OUT
  • Stand sleeve

Antal
Klar til afhentning // afsendelse fra eget lager

Active/passivepassive
Transmission technologycable
Total output power-
Power rating (RMS)-
Total power rating300 W
Power rating (RMS)150 W
Impedance8 _
Frequency range60-20,000 Hz
THD-
S/N ratio-
Input signal-
System8/2 full range
Full range speaker-
Bass speaker20 cm (8") bass speaker
Midrange speaker-
Tweeter25 mm (1") horn tweeter
Number of speakers2
Speaker size20 cm (8")
SPL98 dB/W/m
Max. rated SPL121 dB
Beam angleH: 90°/V: 60°, horn can be turned
Radiation angle, horizontal90°
Radiation angle, vertical60°
Features-
Housing materialbirch plywood
Colourblack
Mounting deviceM8 threaded inserts, stand sleeve
Protected against ball rebound-
Protection class-
Admiss. ambient temp.0-40 °C
Power supply-
Dimensions270 x 460 x 290 mm
Width270 mm
Height460 mm
Depth290 mm
Weight8.43 kg

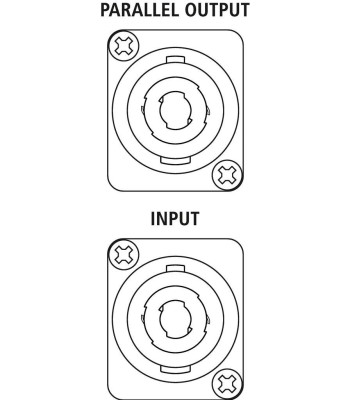

Inputs1 x SPEAKER jack
Outputs1 x SPEAKER jack par. out
Replacement voice coil-
Other features-
Accessories-
Packing dimensions (W x H x L)0.4 x 0.58 x 0.38 m
Gross weight11.5 kg
Net weight8.43 kg
IMG STAGELINE
DRIVE-08P
