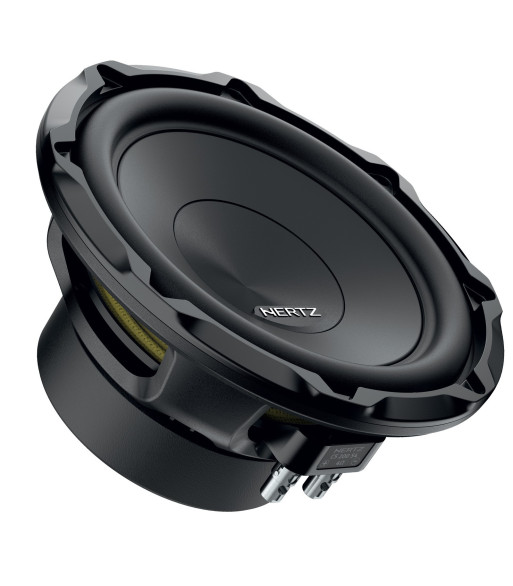

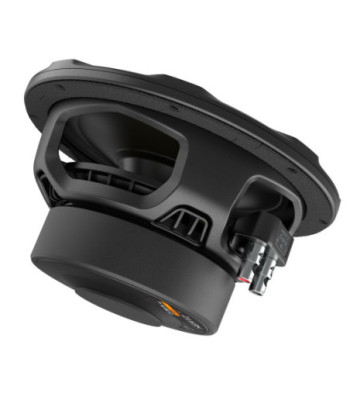

Hertz Cento 8"/200mm 4 Ohm Subwoofer

999,00 kr.
Inkl. moms
Antal
Klar til afsendelse fra fjernlager

8"/200mm 4 ohm subwoofer - den perfekte forbedring



1.  Electroacoustic design optimized for enclosures starting from 9,6 liters.

2. Fluid dynamic optimization system that drastically reduces the acoustic distortions generated by the air compression at high excursions.

3. Polypropylene cone and dust cap geometry engineered through FEM simulations for low-frequency distortion reduction.

4. 35 mm 4 _ voice coil wound on six layers of pure copper on a high thermal resistance glass fiber support.

5. Magnetic group geometry optimized with proprietary software for high undistorted SPL at high excursions.

6. Ideal for use in custom boxes that can be shaped around the subwoofer thanks to its compact size and lack of a decompression hole.

7. Terminal block featuring solid push contacts that accept cables up to 8 AWG to offer low wiring resistance and maximum ease of connection even in installations with multiple subwoofers.

8. Rubber protection of the magnetic assembly and high-strength ABS plastic gasket allowing the application of the optional grille for an elegant finish.



Technical Specs

Size mm (in.)

200 (8)

Power Handling - Continuous W

150

Power Handling - Peak W

300

Impedance Ohm

4

Voice Coil Type

single

No Filter Component

SUBWOOFER

Voice Coil Ø

35 (1.38)

Magnet size D x d x h mm (in.)

120 x 50 x 28 (4.72 x 1.97 x 1.1)

Weight of one component kg (lb.)

2,87 (1.30)

Magnet

High density flux ferrite

Cone

Polyproyilene

Xmech mm (in.)

11,5 (0.45)

Electro-acoustic Specs

D mm

172

Xmax mm

9

Re Ohm

3,3

Fs Hz

40

Le mH

1,7

Vas I

13,7

Mms g

76,8

Cms mm/N

0,21

BL T*m

10,6

Qts

0,52

Qes

0,58

Qms

5

Spl dB

84

Physical Specs

A

213 mm

8.39 in.

B

177 mm

6.97 in.

C

114 mm

4.49 in.

D

101 mm

3.98 in.

E

201 mm

7.92 in.

F

24 mm

0.95 in.
Hertz
CS200S4

Produktinformation

AutoStereo: Enhedstype
Bass enhed
AutoStereo: Segment
Premium
AutoStereo: Segment
Performance
AutoStereo: Diameter
200 mm (8")
AutoStereo: RMS Power
200 W
AutoStereo: Følsomhed (dB)
84 dB
AutoStereo: Max Power
400 W
AutoStereo: Frekvens område
30 Hz - 400 Hz
AutoStereo: Impedans Ω
4 Ω
AutoStereo: Hul Mål
181 mm
AutoStereo: Montage Dybde
95 mm
AutoStereo: X-Max
11,5 mm
AutoStereo: Magnet Bredde
120 mm
