RIGGATEC for use with 28mm TV spigot - 48-51mm pipe diameter

329,00 kr.
Inkl. moms

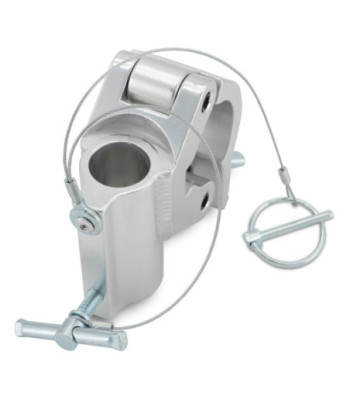

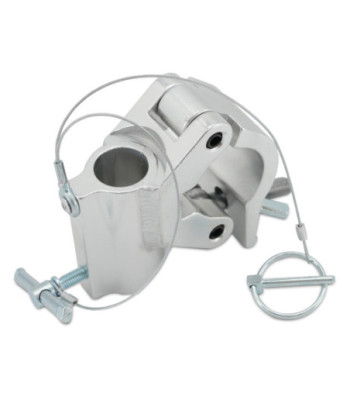

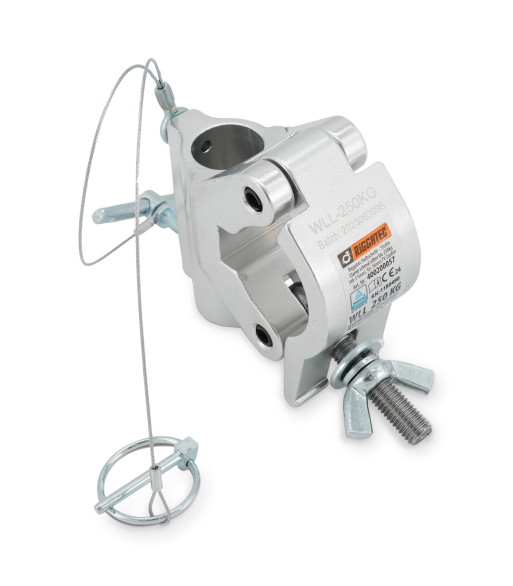

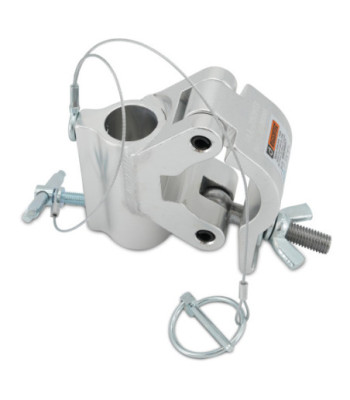

Riggatec half clamp - TV spigot up to 250kg (48-51mm) for 28mm TV spigot

This high-quality and durable clamp was originally developed especially for professional use in studios. It is now used for all lights and speakers. With an impressive load capacity of up to 250kg, it holds even heavy equipment securely in place. This half clamp fits perfectly on tubes with a diameter of 48-51 mm and offers a reliable mounting option for 28 mm TV spigots.

Antal
Klar til afsendelse fra fjernlager

  • For 48 - 51 mm pipe diameter
  • TÜV tested (certificate available on request)
  • Load capacity up to 250 kg (tensile load)
  • Clamp width: 30 mm
  • Maximum shear load: 100 kg
  • Material: Aluminium 6061 T6, black
  • External dimensions: 113 x 30 x 162 mm (length x width x height)
  • Weight: 0.93 kg

General

Mounting Clamp, TV spigot
Maximum load 250 kg
Maximum shear load 100 kg
Material Aluminium
Locking screw M10
Device screw M8
Colour Silver

Dimensions & weight

Clamp range 48 - 51 mm
Clamp width 30 mm
Width 30 mm
Height 162 mm
Depth 113 mm
Weight 930 g
RIGGATEC
RIG400200057
