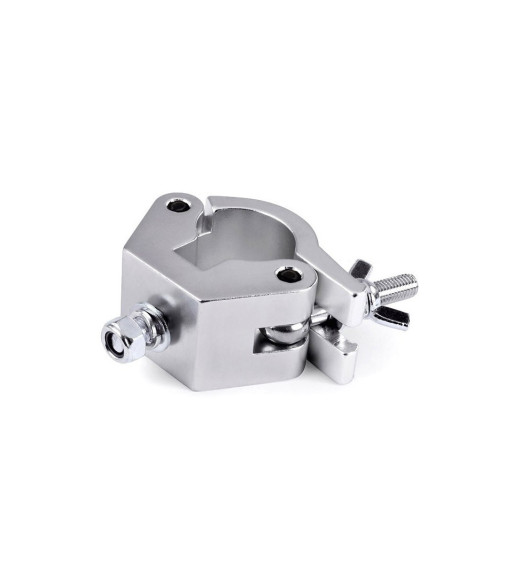

RIGGATEC Halfcoupler Heavy max. load 750 kg MKII (48 - 51 mm)
search
  • RIGGATEC Halfcoupler Heavy max. load 750 kg MKII (48 - 51 mm)

RIGGATEC Halfcoupler Heavy max. load 750 kg MKII (48 - 51 mm), Silver

159,00 kr.
Inkl. moms
400200039
  • For 48 - 51 mm pipe diameter
  • Resilient up to 750 kg (tensile load)
  • TUV approved (certificate can be sent on request)
  • Clamp width: 51 mm
  • Maximum shearing load: 100 kg
  • Material: Aluminum 6061 T6
  • Incl. device screw M12 silver, retaining ring, grommet and wing nut
  • Lock screw M8 zinc coated with grommet and wing nut
  • Outer dimensions: 113 x 51 x 81 mm (length x width x height without device screw)
  • Weight: 0,70 kg
Antal
Klar til afsendelse fra fjernlager

Product typeTruss Accessories
Suitable for tube diameter48 - 51 mm
Tensile load750 kg
Shear load max.100 kg
Colorsilver
MaterialAluminium
Clamp width51 mm
Length113 mm
Width51 mm
Height81 mm
CertificationTÜV-certified
Weight0,7 kg
RIGGATEC
RIG400200039
