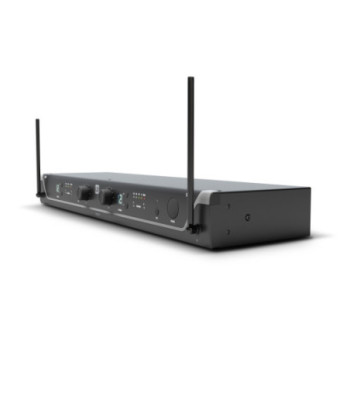

LD Systems Dual Receiver- 863 - 865 MHz + 823 - 832 MHz

2.709,00 kr.
Inkl. moms
U308 R2

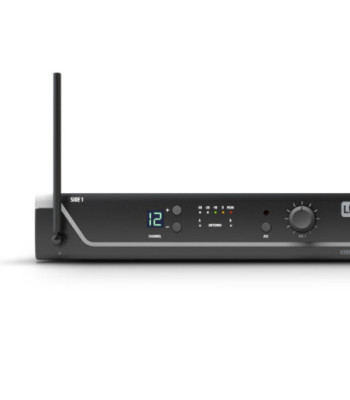

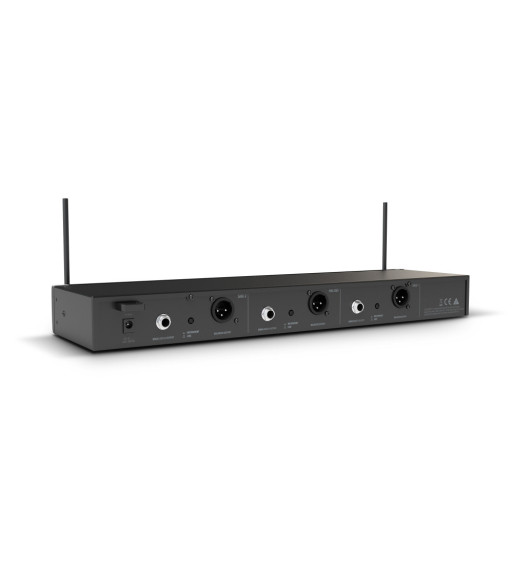

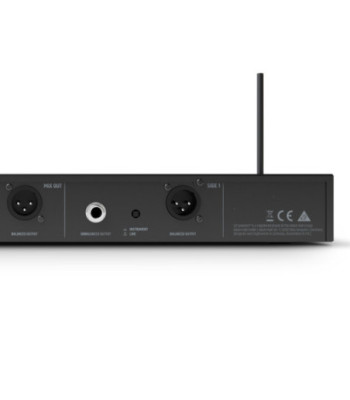

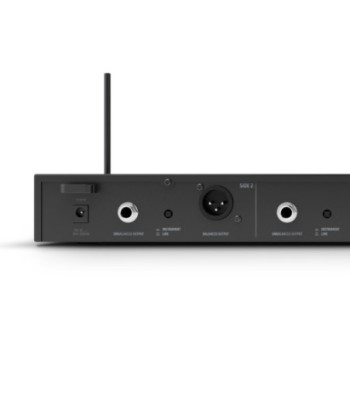

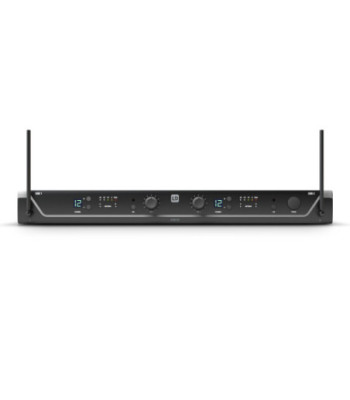

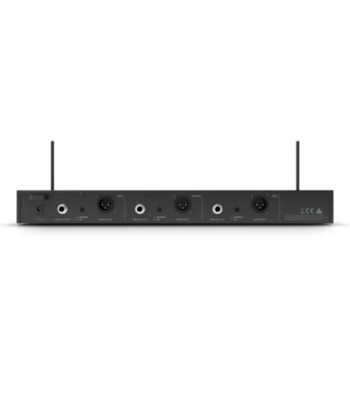

The U300 R2 series 12-channel UHF dual-receiver operates with FM technology in the frequency bands 863 - 865 MHz + 823 - 832 MHz and features a 35 Hz to 16 kHz frequency response. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection with the handheld transmitter microphone or bodypack from the same series. A squelch with pilot tone ensures disruption-free operation. The U308 R2 dual-receiver features elegant metal housing with a bright LCD channel display, channel selectionkeys and LEDs that display audio signal strength and active antenna.Two balanced XLR and two unbalanced 6.35 mm jack outputs are located on the rear panel, which can be switched to instrument level for direct connection to guitar and bass amplifiers. A power adapte is included.

Antal
Klar til afsendelse fra fjernlager

Product typeWireless Microphone System Accessories
TypeReceivers
Modulation TypeFM
Transmission frequency range823 - 832 MHz
Transmission frequency range863 - 865 MHz
Channels12
Groups1
Antenna inputs2 x fixed
Frequency response35 - 16000
Noise reductionSquelch
Transmission optimizationPilot tone
Total Harmonic Distortion (THD)< 0.3 %
Signal-to-noise ratio104 dB
Audio output, balanced3 x XLR
Audio output, unbalanced6.3 mm jack
Audio output, unbalancedswitchable unbalanced output level ( Line/Instrument )
Audio mix output, balancedXLR
Audio mix output, unbalanced6.3 mm jack
Max. output level+10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
Controls2 x Volume
ControlsChannel down
ControlsChannel up
ControlsLine/Instrument Level
ControlsPower On/Off
Indicators5-LED VU-Meter
IndicatorsAntenna A/B
IndicatorsLCD display
Operating voltage12 V DC, 500 mA
Width410 mm
Height43 mm
Depth120 mm
Weight1,265 kg
Accessories (included)2 x AA batteries
Accessories (included)Power supply
Other featuresIR frequency synchronisation
Other featuresPilot tone
LD Systems
LDU308R2
