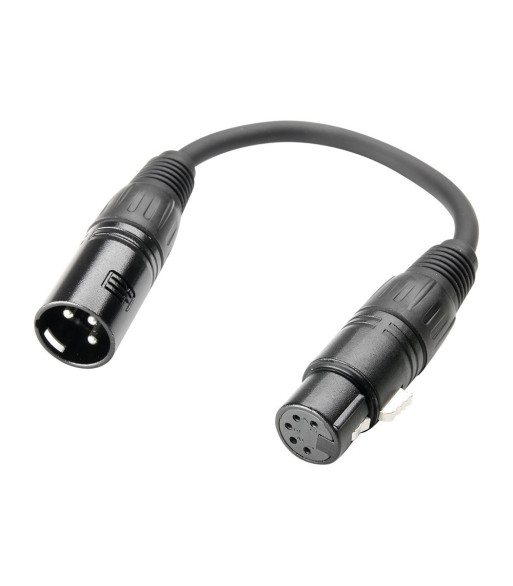

Adapter DMX Cable | Adam Hall® XLR 5-pole Female x XLR 3-pole Male | 0.2 m
search
  • Adapter DMX Cable | Adam Hall® XLR 5-pole Female x XLR 3-pole Male | 0.2 m

Adapter DMX Cable - Adam Hall® XLR 5-pole Female x XLR 3-pole Male - 0.2 m

62,00 kr.
Inkl. moms

3 STAR DHM 0020

Highly flexible DMX adapter cable with three-pin and five-pin XLR plugs.

Antal
Klar til afhentning // afsendelse fra eget lager

Product type Plugs and Connectors
Product type Plugs and Connectors
Type XLR Connectors
Type XLR Connectors
Poles 3
Poles 3
Gender female
Gender male
Cable diameter 8 mm
Cable diameter 8 mm
Contacts silver plated
Contacts silver plated
Connection type solder contacts
Connection type solder contacts
Color Black
Color Black
Housing die-cast zinc
Housing die-cast zinc
Strain relief Plastic
Strain relief Plastic
Length 67 mm
Length 70 mm
Diameter 19 mm
Diameter 19 mm
Weight 0,018 kg
Weight 0,018 kg

General

Cable length 0.2 m
Cable jacket PVC (Polyvinyl chloride)
Cable diameter 5.9 mm
Cable colour Black

Plugs

Connector type plug 1 XLR 5-pole female
Model name plug 1 Adam Hall 4 STAR C XF5 BLK
Contact material plug 1 Nickel plated
Connector type plug 2 XLR 3-pole male
Model name plug 2 Adam Hall 4 STAR C XM3 BLK
Contact material plug 2 Nickel plated

Line

Conductor material Oxygen-free copper (OFC)
Conductor diameter 2 x 0,22 mm²
AWG 24

Environmental

Temperature range -20 - 70 °C

Dimensions & weight

Weight 77 g
Adam Hall Cables
K3DHM0020
10 Varer

Produktinformation

Farve
Sort
Kabel: Længde
0.2 meter
Kabel: Stik - start
XLR - 5pol - hun
Kabel: Stik - slut
XLR - 3pol - han
Kabel: Type
Signalkabel: Audio - basis
Kabel: Kvalitet
3 STAR
