Product description:

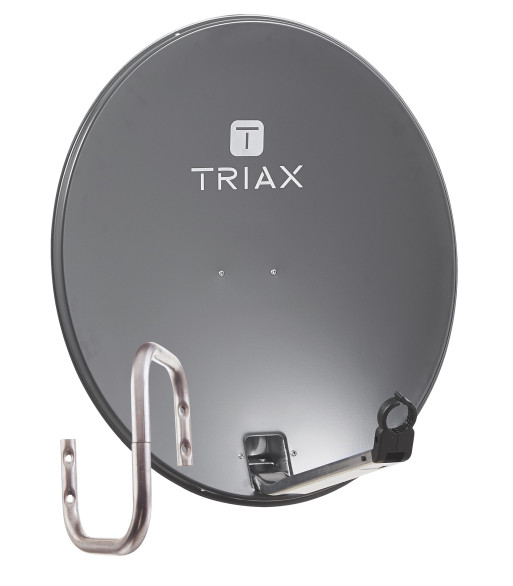

TD 64 RAL 7016 powder painted - w/ S bracket.

  • Antracit-grey TD 64 - fully powder painted
    - in other words, rear piece, arm & mast bracket painted in the same color as the reflektor.
  • "S-bracket" for wall mounting.
  • Size 64 cm
  • Color - RAL 7016

Specifications

ORDER INFORMATION
EAN Number 5702661206153
CHARACTERISTICS
Type TD 64
G/T LNB 0.7 16 dB/K
X-polarisation >27 dB
Offset angle 26 °
Elevation range 10-50 / 45-80 °
FREQUENCY
Frequency range 10.7 - 12.75 GHz
GAIN
Gain @ 11.7 GHz 35.8 dBi
MECHANICAL
Main material Galvanized steel
Height (cm) 65 cm
Width (cm) 60 cm
LNB holder 23-40mm / Black
Mast bracket diameter <60 mm
Reflector type Offset
Beamwidth 3.1 °
Windload @ 42 m/s 445 N
Product Height 650 mm
Finish Polyester powder coat
Colour RAL 7016
Packing QTY 1
Packaging Height 0,115 m
Packaging Width 0,658 m
Packaging Depth 0,658 m
Packaging Volume 0,050 m3
Net Weight 3,300 kg
Tara Weight 0,700 kg
Total Weight 4,000 kg
Remarks Singlepacked
120615
1 Enhed
