• -22%

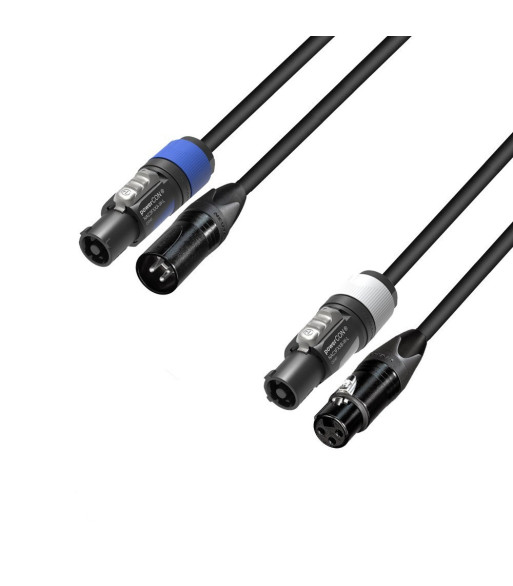

Hybrid Cable | audio Neutrik® XLR x powerCON® | 3m
search
  • Hybrid Cable | audio Neutrik® XLR x powerCON® | 3m

Hybrid Cable - audio Neutrik® XLR x powerCON® - 3m

679,00 kr.
529,62 kr. Spar 22%
Inkl. moms
5 STAR H PCON A 0300

For looping stage wedges (like f.e. LD Systems® MON G3 series) through, we have added the new hybrid cables to our 5 STAR SERIES, which is made in EU. Assembled with original Neutrik powerCON® & 3-pole XLR you have the right connectors on hand.

This product is made for audio applications. For DMX & AES/EBU you can also check the solutions from Adam Hall Cables®

Antal
Klar til afsendelse fra fjernlager

LOG IND! Forspørg om prismatch, TILBUD på en eller flere varer

account_circle Forbindelse
  • No more tangles cables with our power- & audio hybrid cable
  • Power supply & audio signal transmission in only one cable
  • With original Neutrik® XLR powerCON®
  • Perfect for looping f.e. LD Systems® MON G3 stage wedges through
  • Power line conductor: 3 x 2.5 mm² & audio line conductor: 2 x 0.22 mm²
  • Including a transparent loose heatshrink for labeling the cables

General

Cable length3 m
Split end length40 cm
Cable jacketPVC (Polyvinyl chloride)
Cable diameter17 mm
Cable colourBlack

Plugs

Connector type plug 1XLR 3-pole female
Model name plug 1Neutrik NC3FXX-BAG
Contact material plug 1Silver plated
Connector type plug 2XLR 3-pole male
Model name plug 2Neutrik NC3MXX-BAG
Contact material plug 2Silver plated

Line

Conductor materialOxygen-free copper (OFC)
Conductor diameter2 x 0,22 mm²
AWG24
Capacity/m55 pF
Conductor impedance/km85 Ohm
ShieldSpiral copper shielding
Cable diameter5 mm

Mains plug

Plug type connector 1Mains plug female power out
Model name connector 1Neutrik NAC3FXXB-W-L
Plug type connector 2Mains plug female power in
Model name connector 2Neutrik NAC3FXXA-W-L

Mains line

Conductor materialOxygen-free copper (OFC)
Conductor diameter3 x 2,5 mm²
AWG13
Cable jacketPVC (Polyvinyl chloride)
Cable diameter10 mm

Dimensions & weight

Weight997 g
Adam Hall Cables
K5HPCONA0300

Produktinformation

Farve
Sort
Kabel: Længde
3.00 meter
Kabel: Stik - start
XLR - 3pol - hun
Kabel: Stik - start
XLR - 3pol - han
Kabel: Stik - slut
Strøm: PowerCon 230V - Hun
Kabel: Type
Kombi kabel: Strøm & Signal - 1x Strøm + 1x Signalkabel
Kabel: Kvalitet
5 STAR
