Bakkamera Interface Til Citroën/Opel/Peugeot/Toyota 7" Og 8"

3.599,00 kr.
Inkl. moms
Antal
Klar til afsendelse fra fjernlager

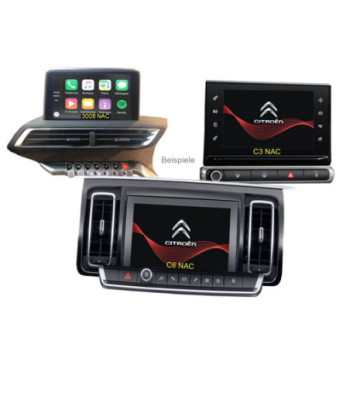

/></p> <p>Video inserter for rear-view camera, front camera with auto switching and 2 video-sources. Compatible with Citroen, Peugeot and Toyota ProAce with RCC or NAC low 7 and 8 inch monitor infotainment and Opel with Navi 5.0.</p> <p>The r.LiNK interface allows to insert a rear-view camera, a front camera with auto switching and two additional video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.</p> <hr /> <h3>Product features</h3> <ul> <li>Video-inserter for factory-infotainment systems</li> <li>1 CVBS rear-view camera video-input</li> <li>1 CVBS front camera video-input</li> <li>2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)</li> <li>Automatic switching to rear-view camera input on engagement of the reverse gear</li> <li>Automatic front camera switching after reverse gear for 10 seconds</li> <li>Activatable parking guide lines for rear-view camera (not available for all vehicles)</li> <li>Video-in-motion (ONLY for connected video-sources)</li> <li>Video-inputs NTSC compatible</li> </ul> <p> </p> <hr /> <h3>Compatibility</h3> <table border= BrandModelNavigation

Citroen Berlingo (K9) since 09/2018
C3 since 01/2017,
C3 Aircross since 11/2017 til 05/2021,
C4 (N) since abiut 2017 til 05/2018,
Grand (C4) SpaceTourer since model year 2018,
C4 Picasso since model year 2017,
Dispatch since model year 2016,
Jumpy III since model year 2016 NAC or RCC with 7inch or 8inch touch monitor. Continental or Bosch head-unit
For Continental High version an additional cable CAB-HSD-MF026 might be required Opel Combo since model year 2018,
Corsa F since 07/2019,
Crossland X since model year 2017,
Grandland X since model year 2017,
Mokka B since 09/2020,
Vivaro since model year 2020,
Zafira Life since model year 2020 Navi 5.0 IntelliLink 8inch (NAC low Continental),
Multimedia Radio 7inch (RCC Bosch),
Multimedia Navi Pro 7inch,
Multimedia 8inch Peugeot 208 since 02/2017 til 03/2019,
208 II since 06/2019,
2008 since 02/2017 til 06/2019,
2008 II since 11/2019,
308 II since 07/2017 til 06/2021,
3008 II since 10/2016,
508 since 02/2017 til 08/2018,
508 II since 10/2018,
5008 II since 02/2017,
Expert III since 03/2016,
Partner III since 06/2018,
Rifter since 09/2018,
Traveller since 09/2016 NAC or RCC with 7inch or 8inch touch monitor. Continental or Bosch head-unit
For Continental High version an additional cable CAB-HSD-MF026 might be required. Toyota ProAce since 2016 RCC (Bosch)




Limitations

Video only The interface inserts ONLY video signals into the infotainment. For audio inserting, use the possibly existing factory audio-AUX-input or a FM-modulator. If 2 AV-sources shall be connected to the infotainment, for audio switching an additional electronic part is required.
Factory rear-view camera Automatic switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back, an additional electronic part is required.
After market front camera The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad.
Video input signal NTSC video sources compatible only.
Continental high version If the two female HSD connectors of the vehicle wiring harness (double HSD) cannot be separated, the separately available cable CAB-HSD-MF026 may be necessary for reconnection.

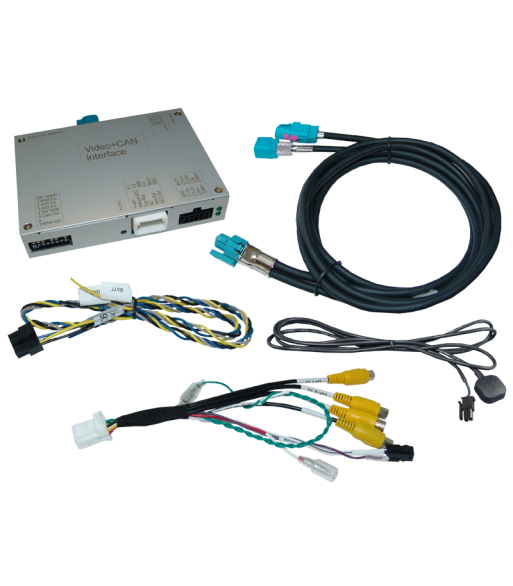

Connectors

  • Video-insertion: 4-pin HSD
  • Power and CAN-bus: Open cable ends
  • Video-input (2x): RCA female connector
  • Rear-view camera-input: RCA female connector
  • Front camera-input: RCA female connector



Specifications

Operating voltage 12V DC (7~25V)
Standby current 4mA
Current consumption 290mA
Video input 0.7~1V
Video input formats NTSC
Operating temperature -40°C to +85°C
Dimensions video-box 118 x 23 x 105mm (W x H x D)
