Bakkamera Interface til Renault

3.999,00 kr.
Inkl. moms
Antal
Klar til afsendelse fra fjernlager

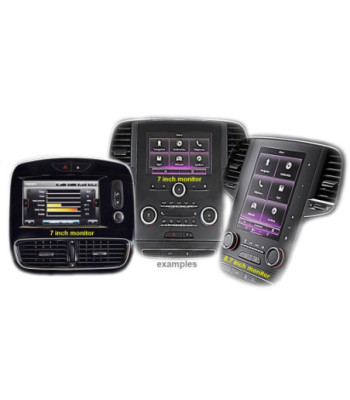

r.LiNK video inserter for rear-view camera, front camera with auto switching and 2 video-sources. Compatible with Renault R-Link2 systems with 7 or 8.7 inch monitors.



The r.LiNK interface allows to insert a rear-view camera, a front camera with auto switching and two different video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.

Product features

  • Video-inserter for factory-infotainment systems
  • 1 CVBS rear-view camera video-input
  • 1 CVBS front camera video-input
  • 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Automatic front camera switching after reverse gear for 10 seconds
  • Video-in-motion (ONLY for connected video-sources)
  • Video-inputs NTSC compatible

Bemærk:

Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.

Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.

En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.

Derfor anbefales det ikke at opdatere bilens multimedie system.

Compatibility

BrandModelNavigation
Renault Captur model year from 2017 til 2019,
Clio model year 2017 til 2019,
Espace model year from 2016,
Kadjar model year from 2016,
Koleos model year from 2016,
Master,
Megane model year from 2016 -> 2020
Scenic model year from 2016,
Talisman model year from 2016
and other vehicles with		 R-Link2 with 7inch or 8.7inch monitor

Limitations

Video only The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them.
Factory rear-view camera Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
Factory PDC With connecting the interface, the former PDC graphics wonâ__t apply anymore. Acoustic signals will still be present.
After market front camera The front camera will automatically be switched for 5 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad.
Video input signal Only NTSC video sources compatible.
Guide lines Displayed guidelines are not available in all vehicles.

Connectors

  • Video-insertion: Mini USB
  • Power and CAN-bus: Plug & play (vehicle specific)
  • Video-input (2x): RCA female connector
  • Rear-view camera-input: RCA female connector
  • Front camera-input: RCA female connector

Specifications

Operating voltage 12V DC (7~25V)
Standby current 2mA
Current consumption 280mA
Video input 0.7~1V
Video input formats NTSC
Operating temperature -40°C to +85°C
Dimensions video-box 115 x 24 x 103mm (W x H x D)
Au2Tek - kabelsæt & rammer
NA-RL4RLINK2

Produktinformation

AutoStereo: Bil mærke
Renault
AutoStereo: Kompatibilitet
CAN-Bus
AutoStereo: Bil Modeller
Renault - Captur
AutoStereo: Bil Modeller
Renault - Clio
AutoStereo: Bil Modeller
Renault - Espace
AutoStereo: Bil Modeller
Renault - Kadjar
AutoStereo: Bil Modeller
Renault - Koleos
AutoStereo: Bil Modeller
Renault - Master
AutoStereo: Bil Modeller
Renault - Megane
AutoStereo: Bil Modeller
Renault - Scenic
