Bakkamera Interface Til Citroën/Opel/Peugeot/Toyota 10,25"

3.999,00 kr.
Inkl. moms
Antal
Klar til afsendelse fra fjernlager

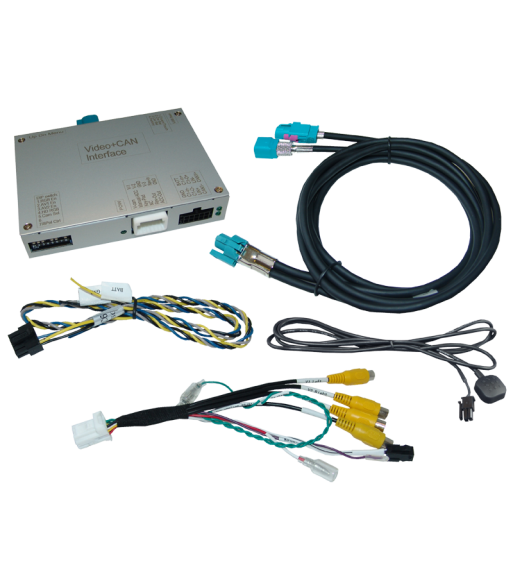

/></p> <p>Video inserter for rear-view-camera, front camera with auto switching and 2 further video-inputs. Compatible with Opel and Peugeot with NAC with 10.25 inch monitor.</p> <p>The r.LiNK interface allows to insert a rear-view camera, a front camera with auto switching and two different video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.</p> <hr /> <h3>Product features</h3> <ul> <li>Video-inserter for factory-infotainment systems</li> <li>1 CVBS rear-view camera video-input</li> <li>1 CVBS front camera video-input</li> <li>2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)</li> <li>Automatic switching to rear-view camera input on engagement of the reverse gear</li> <li>Automatic front camera switching after reverse gear for 10 seconds</li> <li>Activatable parking guide lines for rear-view camera in combination with PDC display (not available for all vehicles)</li> <li>Video-in-motion (ONLY for connected video-sources)</li> <li>Video-inputs NTSC compatible</li> </ul> <p> </p> <hr /> <h3>Compatibility</h3> <table border= BrandModelNavigation

Citroen C4 from 11/2020,
C5 X from 02/2022,
DS3 Crossback from 12/2018,
DS4 from 11/2021 NAC or DS Connect Radio/Nav with 10.25inch touch monitor Opel Corsa F model year from 2019,
Mokka B from 09/2020, NAC or RCC with 10.25inch touch monitor Peugeot 208 II from 06/2019,
2008 II from 11/2019,
08 III from 09/2021,
3008 II from 05/2021,
508 II from 10/2018,
5008 II from 10/2020 NAC or RCC with 10.25inch touch monitor




Limitations

Video only The interface inserts ONLY video signals into the infotainment. For audio insertion factory-audio-AUX-input or a FM-modulator is required.
Factory rear-view camera Automatic switch to factory rear-view camera only while reverse gear is engaged. To delay the switch reset, additional electronics is required.
After market front camera The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad.
Video input signal NTSC video sources compatible only.
Guidelines and PDC Displayed guidelines and PDC are not available in all vehicles. Guidelines can only be displayed together with PDC.




Connectors

  • Video-insertion: 4-Pin HSD or double 4-Pin HSD
  • Power and CAN-bus: Plug & play (vehicle specific)
  • Video-input (2x): RCA female connector
  • Rear-view camera-input: RCA female connector
  • Front camera-input: RCA female connector



Specifications

Operating voltage 12V DC (7~25V)
Standby current 5mA
Current consumption 280mA
Video input 0.7~1V
Video input formats NTSC
Operating temperature -40°C to +85°C
Dimensions video-box 117 x 25 x 108mm (W x H x D)
Au2Tek - kabelsæt & rammer
NA-RL4NAC12
