Defender Midi 5 2D ramp - modular system for wheelchair and wheelchair accessible transition

1.859,00 kr.
Inkl. moms
MIDI 5 2D RDEFENDER® 2D M modular systems for wheelchair accessibility

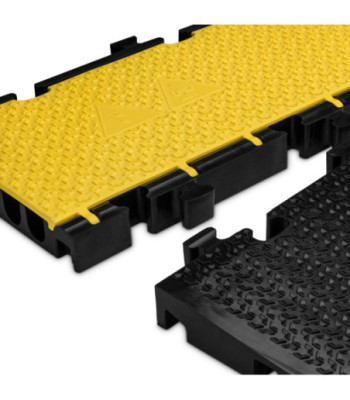

In order to ensure the greatest level of accessibility, the design of the modular DEFENDER® 2D M cable protector system was inspired by our popular DEFENDER® MIDI cable protector. It comprises a MIDI-compatible middle section and a flat ramp, which can be expanded and combined as needed, both in terms of length and width. Plus, it's also extremely easy to handle.

Ramp

'Accessibility' has become a topic of mounting concern for both public authorities and event organisers over the past few years. With most common cable protector systems, a compromise usually has to be made between wheelchair access and trafficability. But that's not the case with the new DEFENDER® 2D M: each middle section is equipped with a 6° inclined, wheelchair accessible ramp that can be driven over completely without any problems. The ramp has the same load capacity as the middle section and can accommodate loads of approx. 5 tonnes per 25 x 30 cm. The flat incline makes it much easier for wheelchair users to roll over the protectors since the footrests don't touch the ramp, and forklifts and trucks also have an easy time driving over the cable protectors because of it.

The ramps are designed to be symmetrical all the way around to facilitate assembly so that you never have to look for the right attachment piece ever again. The sections can be used in several directions as there are no right or left elements. As such no assembly diagrams are required. The symmetrical set-up makes it possible to achieve excellent longitudinal and lateral stability by arranging middle sections and ramps. It also means there are no loose parts which can easily be lost such as adapters and spanners.

The connections were engineered to provide enough room to play around for simple assembly but also to offer a sufficient level of stability. To connect ramps lengthwise, for example, there's a small protrusion that snaps into place by pressing down on it from above. Elements don't have to be lifted up again after the cross-connector has been attached. Furthermore, the ramps feature an ergonomic handle to simplify handling, too.

Antal
Klar til afsendelse fra fjernlager

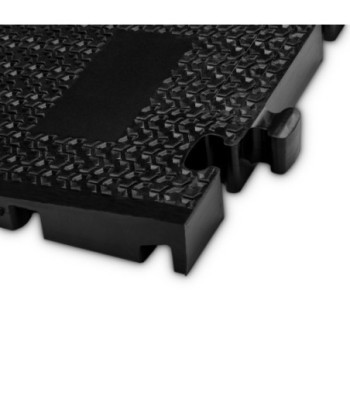

  • Heavy-duty ramp with 3-D Lasergrip anti-slip surface made out of black, recycled polyurethane
  • Drive-over ramp angled at 6°
  • Simple, multidirectional modular structure with unlimited expandability in width and length
  • Fully compatible with DEFENDER® MIDI cable protectors
  • Load capacity: approx. 5 t / 25 × 30 cm
  • Made of extremely robust and break-proof TPU
  • Dimensions: 100 × 5.4 × 43 cm
  • Fire protection class E according to DIN EN 13501-1
  • TÜV SÜD certified
  • Resistant to oil, petrol and short-term contact with solvents
  • Made in Germany

Product typeCable Protectors
TypeRamp Module
MaterialPolyurethane
Length1000 mm
Height54 mm
Width430 mm
ColorBlack
Max loadApprox. 5 t on a surface area of 25 x 30 cm
Chemical resistanceOil-resistant
Chemical resistancePetrol-resistant
Chemical resistanceShort-term contact with solvents
Hardness range88 Shore ± 4 A Shore
Temperature range-30 to + 60 °C
Special feature2D cable bridge (modular in length and width)
Special featureTÜV SÜD certified
Weight9,5 kg
