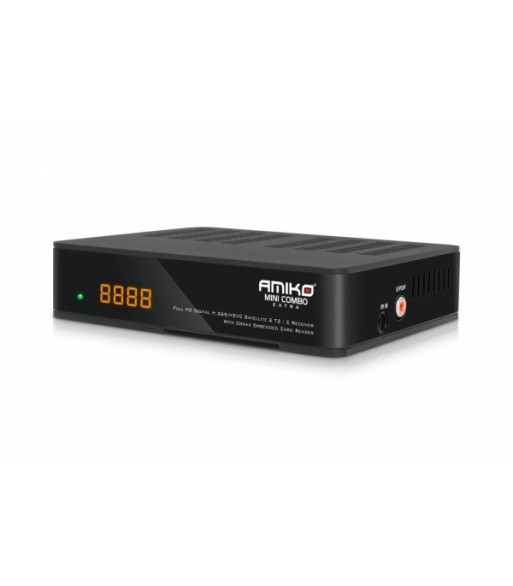

Amiko mini combo EXTRA UDSTILLINGSMODEL

699,00 kr.

Inkl. moms

Amiko tuner

Antal

Klar til afhentning // afsendelse fra eget lager

LOG IND! Forspørg om prismatch, TILBUD på en eller flere varer

Forbindelse

Beskrivelse
Produktoplysninger

HOVEDFUNKTIONER [EN]

DVB-S2 Satellite & DVB-T2/C Terrestrial / Combo Receiver
One Conax Embedded card reader
H.265 / HEVC Codec support
5000 channels (TV and Radio) programmable
External IR Sensor (Included in the package)
Two High Speed USB 2.0 Connection
Ethernet Connection & USB WiFi Support (Ralink RT5370 chip only)
YouTube videos
RSS Reader & Weather Forecast Functions (Ethernet or WiFi connection required)
DiSEqC 1.0, 1.1, 1.2 and USALS Compatible
Full HD (1080p) Output via HDMI
Channel Recording to External Storage Devices (from one frequency only)
Timeshift support
Channel Recording & Timeshifting Simulteniously (optional, only from same frequency)
Channel switching time less than 1 second
True-color, User Friendly On-Screen Display (OSD)
Full Picture In Graphic (PIG) function
Electronic Program Guide (EPG) for on screen channel information
Subtitle supported
Teletext supported by VBI insertion and software emulation
Parental lock facility by channel and program event
Program and Channel information transfer from receiver to receiver
Multi-Language support
RTC (Real-Time-Clock)
Power Consumption in Stand-By: <0.5W

TEKNISKE SPECIFIKATIONER [EN]

Tuner & Demodulation
Tuner Type: DVB-S / DVB-S2
Input Connector: F-type, Connector, Female
Loop Through: F-type, Connector, Female
Signal Level: -65 to -25 dBm
LNB Power & Polarization: Vertical: +13V/+14V,
Horizontal: +18V/+19V
Current: Max. 300mA
Overload Protection
22KHz Tone Frequency: 22±1KHz
DiSEqC Control: Version 1.0, 1.1, 1.2, USALS
Demodulation: QPSK, 8PSK
Input Symbol Rate: 2-45 Mbps,
FEC: 1/2, 2/3, 3/4, 5/6, 7/8 and Auto

Tuner Type: DVB-T2 / DVB-C
Frequency Range: 48~862MHz
RF Input Level: -80dBm to -20dBm
Antenna power output: DC 5V at max 75mA, Overload protection
Demodulation: COFDM 1K, 2K, 4K, 8K normal and extended, 16K normal and extended, 32K normal and extended
Input Symbol Rate: 1.0 ~ 7.0Ms/s
Constellations: QPSK, 16QAM, 64QAM, 256QAM / Both rotated and non-rotated
Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6

System Resources
Main Processor: up to 2000DMIPS CPU
Flash Memory: 8 MiB
DDR RAM: 256 MiB (DDR3 1866MHz)

MPEG TS A/V Decoding
Transport Stream: MPEG-2, MPEG-4 (H.264)
Input Rate: Max.120Mbit/s
Aspect Radio: 4:3, 16:9, Letter Box
Video Decoding: HEVC MP@L4.1, MPEG2 MP@HL, MPEG-4 part 10/H.264
Video Resolution: 720*480p/i, 720*576p/i, 1280*720p, 1920*1080p/i
Audio Decoding: MPEG-1 layer I/II, MPEG-2 layer II, Dolby Digital, AAC
Audio Mode: Left / Right / Stereo/ Mono
Sampling Rate: 32, 44.1 and 48KHz

A/V & Data Input/Output
AV OUT: Video RGB&CVBS output, Audio L/R output (SCART)
LAN: 10/100M RJ-45 Ethernet Connection
USB: Two USB 2.0 slots
HDMI: VER1.3, Type A, Dolby Digital Bit-Stream Output
S/PDIF: Coaxial
IR: External IR input (jack type)

Physical Specifications
Size[W*H*D]: 144mm x 40mm x 110mm
Net Weight: 0.50 Kg
Operation Temperature: 0°C~+45°C
Storage Temperature: -10°C~+70°C
Storage Humidity: 5%~95% RH (Non-Condensing)
