Audio & DMX Multicore - Adam Hall® 4 XLR 5-pole Male x Cat.6a

419,00 kr.
Inkl. moms

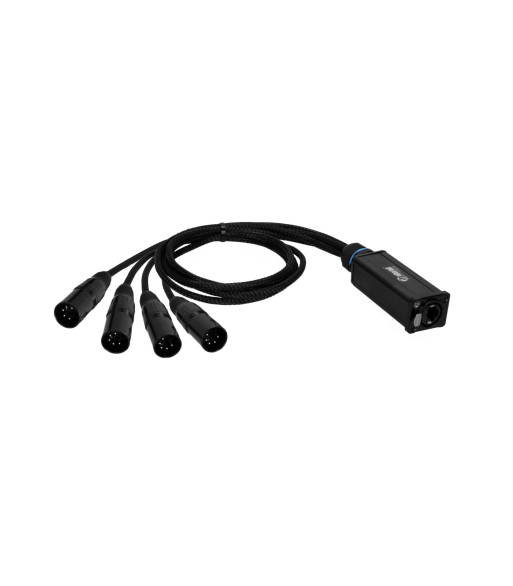

4 STAR CATBOX XM5

With our professional XLR via Cat adapters from the 4 STAR SERIES, you can now use the 4 wire pairs & shield with only one shielded Cat cable instead of a 4-channel multicore. This saves space and is super practical. You can use a standard RJ-45 cable or a cable with etherCON® connectors. Wired according to the AES72 scheme 5E, you can use it with all other CATBOX products from Adam Hall, or with many boxes you have already purchased.

The connectors are completely black and numbered, so you don't have to search long for the right channel.

The CATBOX products are also in other versions available.

Antal
Klar til afsendelse fra fjernlager

  • Audio & DMX over shielded Cat adapter box
  • This adapter is made for transporting four different balanced signal via only one LAN cable
  • The robust braided jacket per conductor-pair protects the cable againt external influences
  • Wired according to AES72 5E
  • The different versions are compliant to each other. Which means that the numbers on the connectors are identical for each product of ours
  • Perfect for use on stage or in the studio

General

Cable length 0.3 m
Cable jacket PVC with braided sheathing
Cable colour Black

Plugs

Connector type plug 1 RJ-45 socket
Connector type plug 2 XLR 5-pole male
Model name plug 2 Adam Hall K4CXM5BLK
Contact material plug 2 Silver plated

Line

CAT standard Cat.6a
Conductor material Oxygen-free copper (OFC)

Dimensions & weight

Weight 280 g
Adam Hall Cables
K4CATBOXXM5

Produktinformation

Farve
Sort
Kabel: Længde
0.3 meter
Kabel: Stik - start
Netværkstik - RJ-45 - Hun
Kabel: Stik - slut
XLR - 5pol - han
Kabel: Type
Signalkabel: Audio // Mikrofon - Skærmet
Kabel: Kvalitet
4 STAR
