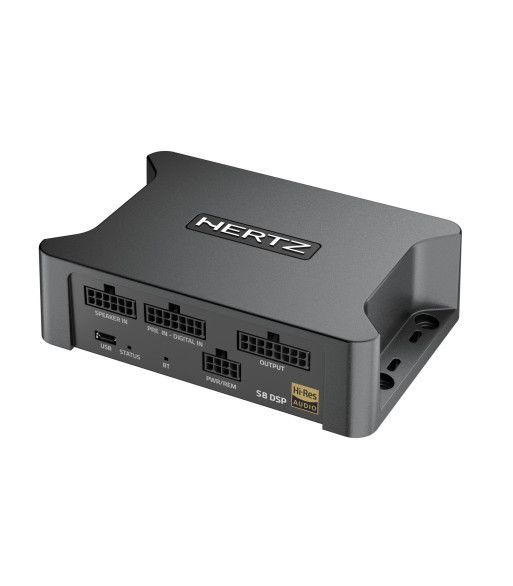

Hertz 8 Kanals Hi-Res Digital Sound Processor

4.699,00 kr.
Inkl. moms
Antal
Klar til afsendelse fra fjernlager

/></p> <h1>Den ultrakompakte Hertz S8 DSP er den perfekte løsning når du vil tilslutte forstærke til din originale radio i biler, på motorcykler og i både!</h1> <div>Hertz S8 DSP er essens af den højeste teknologi for den højeste lydkvalitet monteret i en korrosionsfri kasse støbt i metal og kompositmaterialer.</div> <div>Hertz S8 DSP behandler lydsignalet med 96 kHz / 24-bit opløsning og har opnået Hi-Res-certificeringen fra JAS (Japan Audio Society), en anerkendelse der kun gives til produkter med et ekstremt højt niveau for lydgengivelse. Den kraftfulde 32-bit DSP håndterer 6 analoge inputkanaler på højt/lavt niveau, en digital koaksial indgang og 8 udgangskanaler, hvilket giver maksimal konfigurationsfrihed til dig som vil indstille dit lydanlæg bedst muligt. SPDIF-koaksialindgangen er ideel til digital forbindelse med en Hi-Res-afspiller, en løsning, der giver mulighed for maksimal lyttekvalitet.</div> <div>For hver af de otte udgangskanaler har vi en niveaukontrol, den 15-polede parametriske equalizer, tidsforsinkelser og delefilter til rådighed. Indgangssignalets 7-bånds parametriske equalizer gør det muligt at opnå en linier gengivelse fra OEM-kilder, som ofte har en overdreven vægt på den lave frekvens.</div> <div>Alle indstillinger foretages på din Smartphone. <br /> </div> <p><span><span><span><span><span><span><span>General Specifications</span></span></span></span></span></span></span></p> <table class=

POWER SUPPLY



Nominal Power supply voltage / fuse:

7 ÷ 20 VDC / 1A

Pulse operating voltage:

5 ÷ 24 VDC

Idling current:

0.34 A

OFF current (ART= OFF):

<80 uA

OFF current (ART= ON):

<80 uA

Remote IN

6 ÷ 20 VDC (10 mA)

Remote OUT

4 ÷ 20 VDC (150 mA)

ART - Automatic Remote Turn on/off from BTL speaker outputs (selectable):

1.5 ÷ 7 VDC

Input Stage

Analog low level Inputs

6 ch. (Differential input) (Molex microfit to RCAs)

Analog high level Inputs

6 ch. (Differential input) (Molex microfit to tripped ends) + USS (Universal Speakers Simulator)

Digital inputs

Yes (Coaxial SPDIF; up to 24bit 96KHz) (Molex microfit to RCA)

Input sensitivity (low level)

0.8V _ 6V RMS

Input sensitivity (high level)

2.5V _ 21V RMS

Analog inputs management

Audio input routing matrix type

Analog inputs eq

7 bands paragraphic for each input channel

ART

Automatic Remote Turn-On/Off with Speaker-In

Output Stage

Analog outputs (rca)

8 channels

Max output level (rms) @ 0.05% THD

4V

95dBAAnalog outputs management

The DSP controls each output channel: gain, crossover, EQ, delay, polarity

Bandwidth

10Hz _ 40KHz (+/-3db)

Signal to noise ratio (A weighted)

105dBA (Analog Input) 112dBA (Digital Input)

THD+N (@ 1Vrms out, @ 1Khz)

<0.005%

Crosstalk (channel separation) @ 1KHz

>95dBA

Digital Signal Processor

Sample rate

96KHz

Bit depth

24

Output equalizer

15 bands per channel w/ adjustable Q and Frequency

Equalizer resolution

1/10th dB per step +12dB / -12dB

Time aligment (distance)

0 ÷ 468.4 cm / 0 ÷ 184.4 inches

Time aligment (time)

0 ÷ 13.5ms

Time aligment (step)

0,08 ms; 2,8 cm / 1.1 inch

Time aligment (fine set)

0,02 ms; 0,7 cm / 0.27 inch

Crossovers

AP/HP/LP/BP all channels

Crossover type

Butterworth, Linkwitz-Riley, Bessel (All Channels)

Crossover slope

From 6dB/oct. until 30dB/oct. (6dB step)

Crossover steps

120 steps 20Hz-20KHz

Mute function

I can mute every channel separately or all together.

Presets

4 presets

Presets selection

2 specific wires to control the 4 presets selection by extarnal switches.

Input selection by wire

One specific wire to select the desired input between Analog or Digital.

Audio signal compressor on output stage

Yes (enable/disable)

DSP chipset

Analog Device: ADAU1451

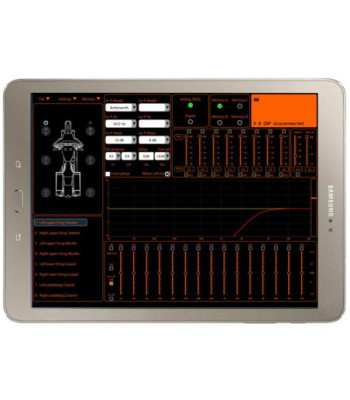

DSP management by bt app (iOS/ Android)

1. CONFIGURATOR mode Mainly it_ll allow the DSP tuning. You can manage every DSP functon through your smartphone/ tablet/PC/MAC. 2. DRC mode The BT device becomes a remote control by using the dedicated app with a simple graphical user interface. Manage volume level, SUB level, select different setup files, upload a new setup file.

Setup file sharing via bt

Upload a setup file via BT through the BT APP when in _Configurator_ or _DRC_ mode.

DSP management by pc / mac / ios / android

Windows OS: Windows 10 - Macintosh OS: macOS 10.13 High Sierra or later - Android OS: version 7 or later iOS: version 12 or later

Physical Specs

Max size W x H x D (mm/inch)

130 x 33.8 x 88,3 / 5.11 x 1.44 x 3.47

Weight (kg/lbs)

0,66 / 1.45
Hertz
S8DSP
