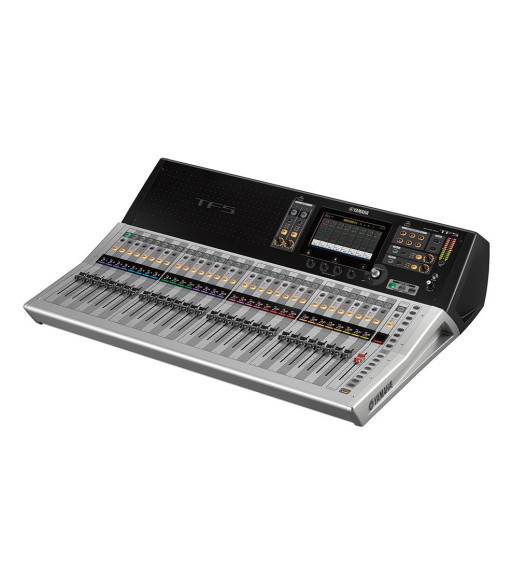

Yamaha TF5 Digital Mixing Console
search
  • Yamaha TF5 Digital Mixing Console
  • Yamaha TF5 Digital Mixing Console
  • Yamaha TF5 Digital Mixing Console
  • Yamaha TF5 Digital Mixing Console
  • Yamaha TF5 Digital Mixing Console
  • Yamaha TF5 Digital Mixing Console

YAMAHA Digital mixer, 40 + 2 St & 2 Return, 20 AUX. - TF5

47.069,00 kr.
Inkl. moms
  • 33 motoriserede fadere (32 kanalfadere + 1 master)
  • 48 inputkanaler til mix (40 mono + 2 stereo + 2 return)
  • 20 Aux (8 mono + 6 stereo) + Stereo + Sub busser
  • 8 DCA-grupper med Roll-out
  • 32 analoge XLR/TRS combo mic/line inputs + 2 analoge stereo phono line inputs
  • 16 analoge XLR outputs
  • 34 x 34 kanalers digital ind- og afspilning via USB 2.0 + 2 x 2 via en USB-stick
  • 1 udvidelses-slot til NY64-D audio interface kort
Antal
Klar til afsendelse fra fjernlager

Yamaha TF5 Specs

Mixer
Number of Analog Input Channels 32
Number of Mic Preamps 24
Number of Analog Output Channels 16
Max I/O Capacity 48 x Input / 22 x Output
Mix Routing 1 x Main LRC
1 x Subgroup
6 x Stereo Aux Send
8 x Mono Aux Send
Groups 8 x DCA Group
Presets Yes
Display Touchscreen
Faders & Level Adjustment 33 x 3.9" / 100 mm Motorized Fader
Signal Processing
Gain/Trim Range -6 dB to +66 dB
EQ None
Graphic EQ Yes
Built-In Effects 8 x Effect (Type Unspecified)
Real Time Analyzer Yes
Audio Delay Yes
Digital Audio
Sample Rates 48 kHz
Bit Depth Record:
24-Bit
Converter Dynamic Range D/A:
110 dB
Latency < 2.6 ms (Analog Input to Analog Output)
Performance
Frequency Response 20 Hz to 20 kHz +0.5/-1.5 dB
Max Input Level Mic/Line Input:
+30 dBu
Stereo Input:
+10 dBV
Output Level Output:
+4 dBu (2901653169)
+24 dBu (2901653168)
Analog Dynamic Range 107 dB at Min Gain
Headphone Output Power 3 mW
75 mW (Max)
I/O Impedance Combo XLR-1/4" Input:
7.5 Kilohms
Stereo RCA Input:
10 Kilohms
XLR Output:
75 Ohms
Headphone Output:
100 Ohms
Crosstalk -100 dB
EIN -128 dBu at Max Gain (2901653035)
Noise Floor -85 dBu A-Weighted
THD < 0.05% at Min Gain (+4 dBu)
Signal Generator Yes
Connectivity
Analog Inputs 1 x 1/4" TS Footswitch Input
32 x Combo XLR-1/4" TRS Balanced Mic/Line Input
2 x Stereo RCA Unbalanced Input
Analog Outputs 16 x XLR Balanced Output
1 x 1/4" TRS Unbalanced Headphone Output
Digital I/O 1 x RJ45 (Network)
MIDI I/O None
USB 1 x USB-B (Host Connection)
2 x USB-A (Control, External Memory)
Expansion Ports 1 x I/O Card
Mobile App Compatible Yes: Android & iOS
App Name: TF Editor, TF StageMix, MonitorMix
Functionality: Adjust Settings, Remote Control, Setup, View Live Feed
*As of May, 2023: Check with manufacturer for the most up-to-date compatibility
Recording
Max Multitrack Recording 34 Tracks
File Format Support Playback: MP3, WAV
Record: WAV
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption 120 W
Rack Mountable No
Dimensions 34.1 x 8.9 x 23.6" / 866 x 225 x 599 mm
Weight 44.1 lb / 20 kg
Packaging Info
Package Weight 57.2 lb
Box Dimensions (LxWxH) 38 x 29 x 13"
Yamaha
CTF5
