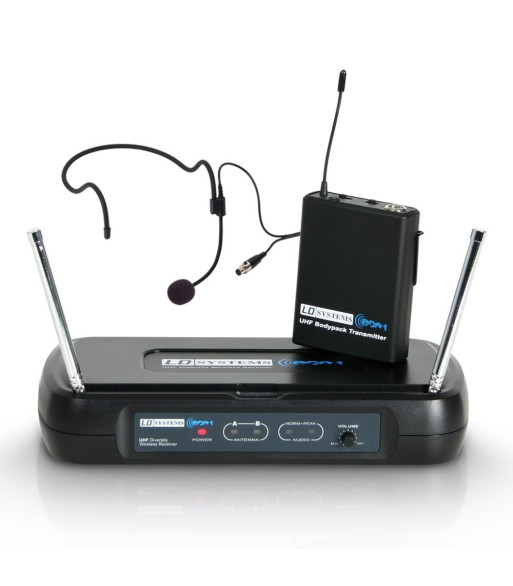

LD Systems ECO 2 BPH 1

1.249,00 kr.
Inkl. moms
  • Single channel UHF PLL wireless system
  • 863.1 MHz band operation
  • 50 m line-of-sight operating range
  • Headset mic and bodypack with input sensitivity selector and power/mute switch
  • Diversity receiver with XLR and 1/4_ outputs
  • 10+ hours operating time
  • Power adapter and 2 AA batteries included
Antal
Klar til afhentning // afsendelse fra eget lager

Specifications

General
Product type
Wireless Microphone Systems
Type
Headsets
Transmission frequency range
863.1 MHz
Items in this set
LD Systems WS 100 MH 1 Headset microphone, black
 View items
Product type
Wireless Microphone System Accessories
Type
Headsets
Directivity
Cardioid
Frequency response
100 Hz - 12 KHz
Nominal impedance
680 Ohm(s)
Phantom power requierements
5 V
Microphone input
Mini-XLR (3-pin, female)
Cable length
1 m
Accessories (included)
Foam windscreen
Weight
0,049 kg
LD Systems ECO 2 BP 1 Bodypack transmitter
 View items
Product type
Wireless Microphone System Accessories
Type
Belt Packs
Transmission frequency range
863.1 MHz
Channels
1
Inputs
Mini-XLR (3-pin) with phantom power (for headset)
Frequency response
60 - 16.000
Rated HF output power
10 mW
Controls
Mic / 0dB / -10 dB switch, power (on/off/mute)
Indicators
battery status
Power supply
2 x AA battery
Operating time
>10 h (with alkaline batteries)
Width
65 mm
Height
85 mm
Depth
23 mm
Weight
0,1 kg
Other features
incl. batteries

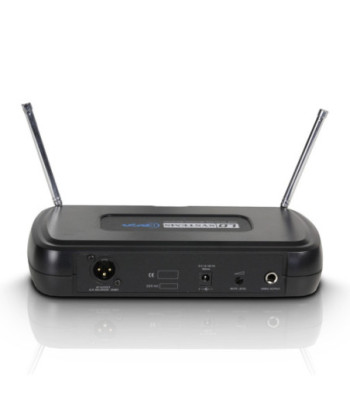

LD Systems ECO 2 R 1 Receiver
 View items
Product type
Wireless Microphone System Accessories
Type
Receivers
Transmission frequency range
863.1 MHz
Modulation Type
FM
Channels
1
Antenna inputs
2
Frequency response
60 - 16.000
Antenna connector
fixed to housing
Noise reduction
Squelch
Signal-to-noise ratio
> 105 dB
Controls
Mute Level (Squelch), volume
Indicators
Antenna A/B, Audio signal (Norm / Peak), Power
Audio output, balanced
XLR
Power supply
12 - 18 V DC, 400 mA, External Power Supply
Audio output, unbalanced
6.3 mm jack
Width
235 mm
Accessories (included)
Batteries, Power supply
Height
44 mm
Depth
118 mm
Weight
0,6 kg
LD Systems
LDWSECO2BPH1
