Palmer 19" Stereo Power Amp for Guitar

3.779,00 kr.
Inkl. moms
MACHT 402

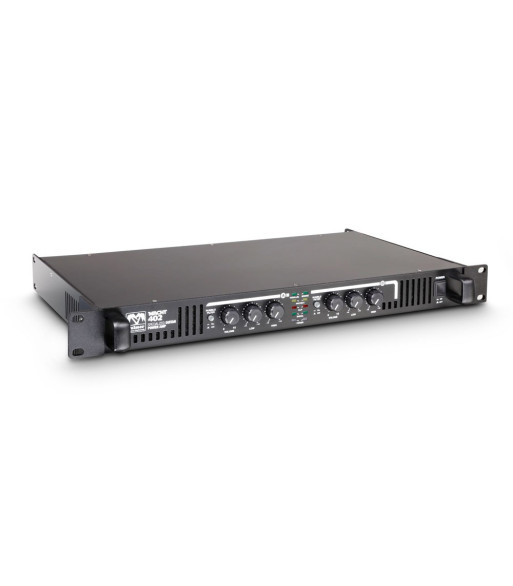

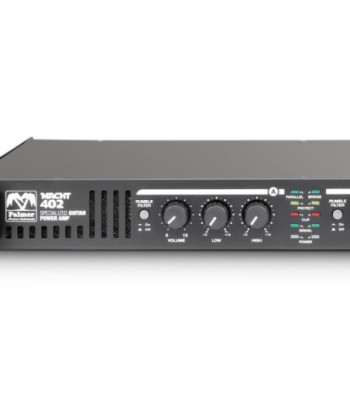

The Palmer MACHT 402 is a 19" stereo power amplifier specially designed for guitar applications. It pumps out 200 watts per channel and 400 watts bridged to drive virtually all speaker cabinets. Featuring a highly efficient switch mode power supply and low noise fan the soft start class D design is protected against overvoltage, DC, short circuits and overheating.

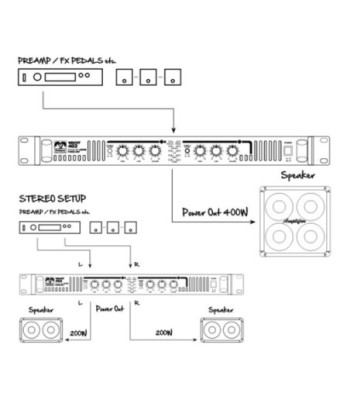

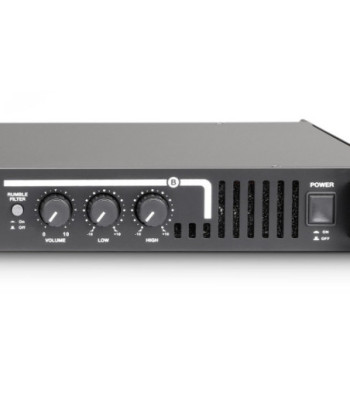

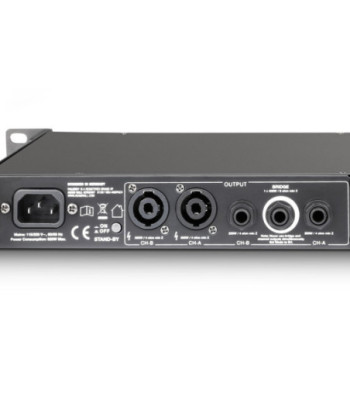

Conventionally named, the channels' Hi and Low controls have been carefully tailored for guitar signals to provide extensive EQ facility, a wide variety of sounds and authentic tube power stage characteristics. In addition, the MACHT 402 sports rumble filtering, LED indicators, a 3-way sensitivity selector, built-in limiter and ground lift switch. With XLR and 6.35 mm inputs as well as Speakon compatible and 6.35 mm output connectors the Palmer MACHT 402 is the ideal power station for guitar preamps, small amps, modelers and even effects pedals.

Attention:

The MACHT 402 is unsuitable for direct connection to a guitar. Please include a preamp, modeller or an effect pedal in between.

Antal
Klar til afsendelse fra fjernlager

  • Stereo guitar power amplifier
  • 200 watts per channel into 4 ohms
  • 400 watts bridged for mono use
  • Carefully tailored, guitar-specific EQ
  • Input sensitivity selector for use with preamps, pedals etc.
  • Built-in limiter
  • All major protections
  • Works with virtually any cabinet(s)

Product typeGuitar Amplifiers
Rated ouput power (1kHz @ 4 Ohms)2 x 200 W
Rated ouput power (1kHz @ 8 Ohms)2 x 100 W
Rated ouput power (1kHz @ 8 Ohms, bridged)400 W
Output circuitryClass D
Frequency response20 - 20000
Total Harmonic Distortion (THD)< 0.1 %
Gain32 dB / 26 dB / 28 dB
Input sensitivity0,68 V / 1,4 V / 1,2 V
Protection circuitsDC
Protection circuitsover-current
Protection circuitsShort circuit
Protection circuitssoft start
Protection circuitsthermal overload
Controlsground lift
Controlshigh
Controlslimiter
Controlslow
ControlsMode
ControlsOn / Off
ControlsSensitivity
Controlsvolume
Indicatorsclip
IndicatorsMode
IndicatorsPower
IndicatorsProtect (protection circuit engaged)
IndicatorsSignal
Line inputs2
Line input connectors6.3 mm jack
Line input connectorsRCA
Loudspeaker outputs2
Speaker output connections6.3 mm jack
Speaker output connectionsSpeakon compatible
Coolinglow-noise fan
Power supplySwitching power supply
Power consumption @ full load470 W
Operating voltage115 V AC / 230 V AC (switchable)
Width482 mm
Height44 mm
Depth244 mm
Weight3,8 kg
Palmer
PMACHT402
