LD Systems Phono Preamplifier and Equalizer

279,00 kr.
Inkl. moms
PPA 2

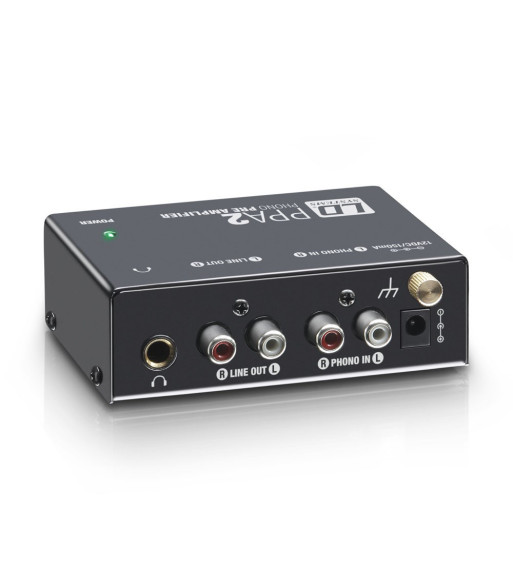

The LD Systems PPA 2 is a very compact analogue phono preamplifier, which equalises the extremely low output signal of conventional turntables to RIAA standards. It allows you to connect to devices without any phono input, such as mixers, PA power amplifiers or sound cards.

The phono inputs are designed as RCA jacks, just like the line outputs; the PPA 2 also has a screw terminal for the ground conductor of the turntable and a 6.3 mm stereo jack for connecting a headset. The THD factor of the preamplifier is below 0.05% and the channel separation is -75 dB.

The LD Systems PPA 2 uses a 12 V AC adapter; a bright LED indicates the power supply on the top of the sturdy metal chassis.

Antal
Klar til afsendelse fra fjernlager

  • Ultra compact phono preamplifier and equalizer
  • Proper RIAA equalization
  • RCA inputs and outputs
  • 6.3 mm stereo headphone output connector
  • Sturdy metal housing
  • 12 V AC/DC adapter included

Product typeOther Studio and Recording Equipment
VersionStereo Input / Stereo Output
Frequency responseRIAA Curve Hz
Signal-to-noise ratio70 dB
Total Harmonic Distortion (THD)<0.05%
Crosstalk-75 dB
Max. input level-23.5 dBV
Max Output Level+10 dBV
Input impedance (kOhms)47 kOhm
Output impedance50 Ohm(s)
Indicatorspower LED
Inputs1 x Phono Stereo
Input connectors2 x RCA
Input connectorsEarth terminal
Line outputsHeadphones
Line outputsLine Stereo
Line output connectors2 x RCA
Line output connectors6.3 mm TRS
Operating voltageExternal Power Supply
Operating voltage12 V DC
Max. Current0.15
Width104 mm
Height36 mm
Depth67 mm
Weight0,28 kg
LD Systems
LDPPA2
