Palmer Reference Class Headphone Amplifier - 1-Channel

4.249,00 kr.
Inkl. moms

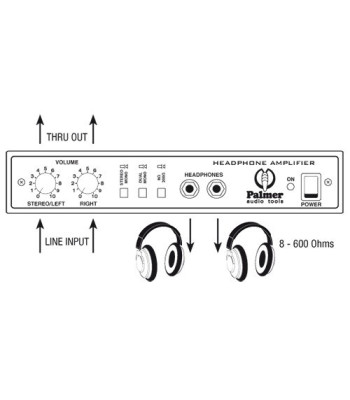

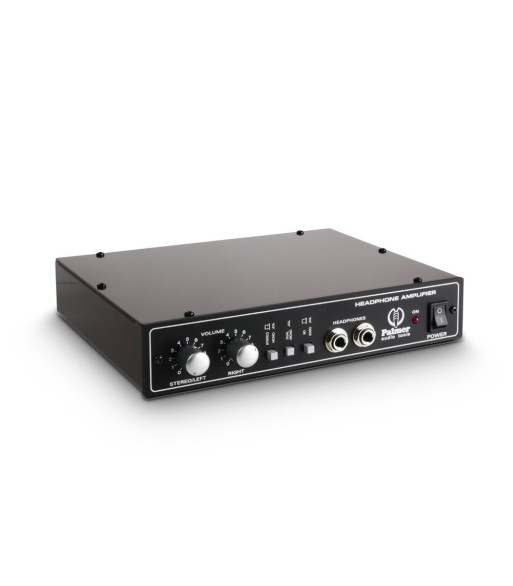

HDA 02The PHDA02 - a reference class headphone amplifier with Stereo, Mono, and Dual Mono operation modes.

In Stereo mode, the L/R input signal is fed to the left and right earphones while the volume level is set by the Stereo/Left control. The front panel inputs provide simultaneous connection of two headphones in parallel. In Mono mode, the left and right channels are summed, and the resulting mono signal is fed to both the left and right earphones. Again, volume is governed by the Stereo/Left control. In Dual Mono mode, the left and right channels can be used independently with individual level controls for the left and right earphones.

The PHDA02 operates with all headphones with an impedance of 8 up to 200 Ohms. Impedance matching is achieved by a specially designed switchable transformer. Uncommon and costly, this solution provides superior performance, dynamic range, and signal- to-noise ratio at all loads.

Combo input sockets allow for balanced XLR and unbalanced TS headphone connection while parallel XLR outputs facilitate daisy chaining multiple units. The integrated power supply operates with mains from 100 VAC to 240 VAC.

The PHDA02 is equipped with low-noise op amps, and the output amplifiers' discrete power transistors are mounted on heatsinks. Dimensions are 1 U 9.5".

Antal
Klar til afsendelse fra fjernlager

Product typeHeadphone Amp:
Inputs2
Input connectors6.3 mm jack
Input connectorsXLR
Input impedance(balanced) 20 k Ohm(s)
Input impedance(unbalanced) 10 k Ohm(s)
Outputs2
Output connectors6.3 mm jack
Output connectorsXLR
Power output2 x 400 mW
Minimum connected impedance2 x 8 Ohm(s)
Frequency response20 - 20000
Controlsvolume
IndicatorsOn
Power supplyintegrated (115 / 230 V)
Operating voltage240 V AC / 50 - 60 Hz
Cabinet materialsheet steel/aluminium
Cabinet surfacepowder coated/anodized
Width222 mm
Height44 mm
Depth175 mm
Weight1,58 kg
Palmer
PHDA02
