  • Hybrid Cable | Power & DMX | Neutrik® XLR 5-pole IP65 x TRUE1® | 5 m

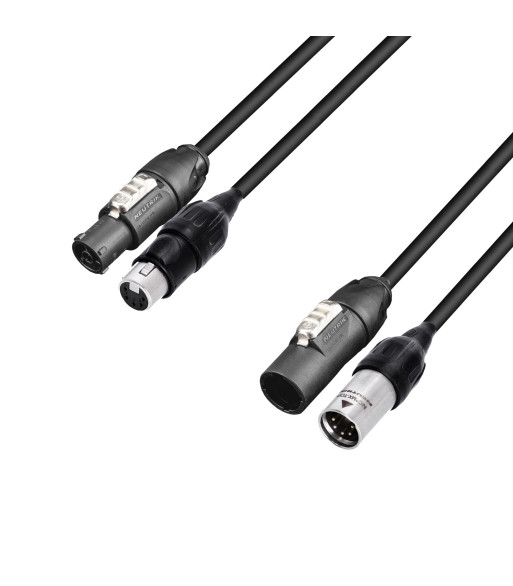

Hybrid Cable - Power & DMX - Neutrik® XLR 5-pole IP65 x TRUE1® - 5 m

1.119,00 kr.
Inkl. moms
5 STAR H TCON 5D 0500 IP65

Hybrid Cable for DMX & power supply

Antal
Klar til afsendelse fra fjernlager

  • The Hybrid Cables from our 5 STAR SERIES are manufactured in the EU
  • Perfectly suited for the parallel supply of devices with power and DMX signals
  • With original connectors from Neutrik®
  • XLR 5-pole IP65 Female to XLR 5-pole IP65 Male & TRUE1-TOP®
  • With a conductor cross-section of 2 x 0.22 mm² DMX cable and 3 x 1.5 mm² mains cable
  • Includes loose, transparent heat-shrink tubing for labeling the cable
  • The splice length is 40 cm

General

Cable length5 m
Split end length40 cm
Cable jacketPVC (Polyvinyl chloride)
Cable diameter17 mm
Cable colourBlack

Plugs

Connector type plug 1XLR 5-pole female
Model name plug 1Neutrik NC5FX-TOP
Contact material plug 1Silver plated
Connector type plug 2XLR 5-pole male
Model name plug 2Neutrik NC5MX-TOP
Contact material plug 2Silver plated

Line

Conductor materialOxygen-free copper (OFC)
Conductor diameter2 x 0,22 mm²
AWG24
Capacity/m55 pF
Conductor impedance/km85 Ohm
Characteristic impedance120 _
ShieldBraided copper shielding
Shielding structure96 x 0.10 mm
Cable jacketPVC (Polyvinyl chloride)
Cable diameter5 mm

Mains plug

Plug type connector 1Mains plug device female IP65
Model name connector 1Neutrik NAC3FX-W-TOP
Plug type connector 2Mains plug device male IP65
Model name connector 2Neutrik NAC3MX-W-TOP

Mains line

Conductor materialOxygen-free copper (OFC)
Conductor diameter3 x 2,5 mm²
AWG13
Cable jacketPVC (Polyvinyl chloride)
Cable diameter10 mm

Environmental

Protection classIP65
Temperature range-20 - 70 °C

Dimensions & weight

Weight930 g
Adam Hall Cables
8101PSDP50500NIP65

Produktinformation

Farve
Sort
Kabel: Længde
5.00 meter
Kabel: Stik - start
XLR - 5pol - han
Kabel: Stik - start
Strøm: PowerCon True1 230V / 16A - Han
Kabel: Stik - slut
XLR - 5pol - hun
Kabel: Stik - slut
Strøm: PowerCon True1 230V / 16A - Han
Kabel: Type
Kombi kabel: Strøm & Signal - 1x Strøm + 1x Signalkabel
