Hybrid Cable | Power & DMX | 3 x 2.5 mm² & 2 x 0.22 mm² | 100 m - 100 meter
search
  • Hybrid Cable | Power & DMX | 3 x 2.5 mm² & 2 x 0.22 mm² | 100 m - 100 meter

Hybrid Cable - Power & DMX - 3 x 2.5 mm² & 2 x 0.22 mm² - 100 m - 100 meter

5.459,00 kr.
Inkl. moms

4 STAR HYBRID POWER DMX 325

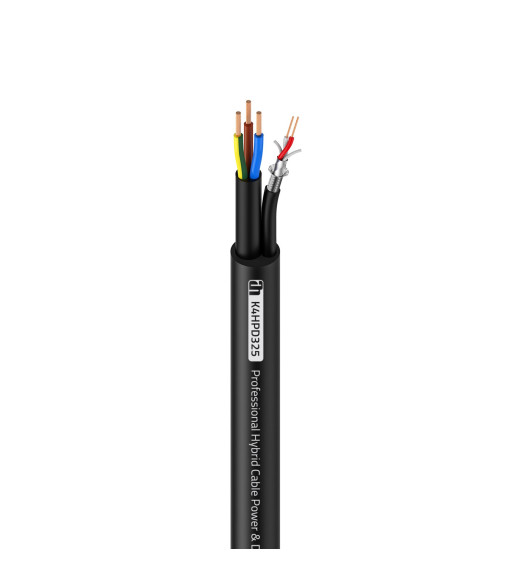

Hybrid Cable for DMX & power supply

Antal
Klar til afsendelse fra fjernlager

  • Professional Hybrid Cable from our 4 STAR "Standard" SERIES
  • Packaging unit: 100 m in one piece
  • For the parallel supply of DMX signals and power in just one cable
  • Dense copper spiral shield with AL/PT foil
  • Highly flexible soft PVC jacket

Product type Bulk Cable
Type Power / Signal Cable
Color Black
Overall diameter 17 mm
Jacket material PVC
Temperature range -20 - 70 °C
Weight 0,4 kg

Power

Diameter 10 mm
AWG 14
Number of internal conductors 3
Center conductor cross section 2.5 mm²
Center conductor construction 96 x 0.10 mm
Center conductor material OFC

DMX

Diameter 2 5 mm
AWG 2 24
Number of inner conductors 2 2
Center conductor cross section 2 0.22 mm²
Center conductor construction 2 7 x 0.20 mm
Center conductor material 2 OFC
Shield Aluminium foil
Shield Copper spiral coil shield
Conductor resistance 2 85 ohm/km
Capacitance 55 pF/m
Adam Hall Cables
K4HPD325

Produktinformation

Farve
Sort
Kabel: Længde
100.00 meter
Kabel: Stik - start
Rulle // åbne ender
Kabel: Stik - slut
Rulle // åbne ender
Kabel: Type
Kombi kabel: Strøm & Signal - 1x Strøm + 1x Signalkabel
Kabel: Kvalitet
4 STAR
