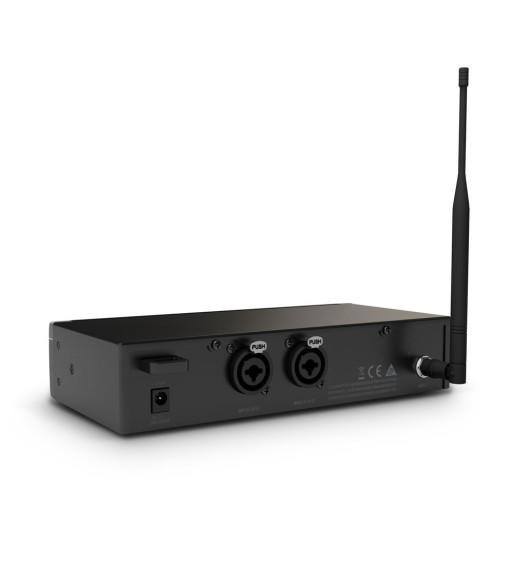

LD Systems Transmitter

1.449,00 kr.
Inkl. moms
U308 IEM T

The new LD Systems U300 IEM In-Ear Monitoring-System with 96 UHF channels offers outstanding sound quality and a large dynamic range in the 584 MHz - 608 MHz, 655 MHz - 679 MHz, 823 MHz - 832 MHz + 863 MHz - 865 MHz, 470 MHz - 490 MHz, or 514 MHz - 542 MHz.

The system toggles between mono and stereo mode for perfect monitoring for live musicians, actors or speakers. A built-in limiter ensures even, distortion-free sound reproduction with a frequency response of 50 Hz - 16 kHz and stands out because of its high signal-to-noise ratio and low total harmonic distortion. The LD U300 IEM permits simultaneous operation of up to 6 systems.

Both transmitter and receiver feature multifunctional displays that show all important system information. With high quality batteries, it is possible to attain running times of 10 hours and more.

* license-free: ISM band license-free in Europe, please check duplex gap for your specific country

Antal
Klar til afsendelse fra fjernlager

Product typeIn-ear Monitoring Accessories
TypeTransmitters
Transmission frequency range823 - 832 MHz
Transmission frequency range863 - 865 MHz
Channels12
Modes of operationmono/stereo
Transmission methodFM, mono/stereo
Rated HF output power10 mW
Frequency response50 - 16.000
Signal-to-noise ratio90 dB
Total Harmonic Distortion (THD)<0,5%
Dynamic range88 dB
Inputs2
Input connectors6.3 mm jack
Input connectorsXLR
Input impedance (kOhms)8.5 kOhm
Input sensitivity-4.5 dbu
Antenna connectorBNC
Controlsinput level
ControlsMono/stereo switch
ControlsPower On/Off
IndicatorsLC display
Power consumption1.7 W
Power supply12 - 18 V DC
Width212 mm
Height43 mm
Depth123 mm
Weight0,66 kg
Accessories (included)19" Rack mount kit
Accessories (included)BNC-Antenna
Accessories (included)Power supply
LD Systems
LDU308IEMT
