LD Systems In-Ear Monitoring System with Earphones - 584 - 608 MHz

2.599,00 kr.

Inkl. moms

U305 IEM HP

We have developed the wireless U300® in-ear monitoring systems for unlimited freedom of movement on the stage with perfect in-ear monitor sound at all times. Developed in Germany, their clear, modern design and straightforward operation make them the perfect choice _ not just for beginners. Their reliable range of up to 100 m and their low-reaching frequency band of 50 Hz to 16 kHz ensure professional performance. U300® in-ear sets are available for operation in 5 frequency bands: 584 MHz - 608 MHz, 655 MHz - 679 MHz, 823 MHz - 832 MHz+ 863 MHz - 865 MHz, 470 MHz - 490 MHz or 514 MHz - 542 MHz. Six systems can be used simultaneously in each case.

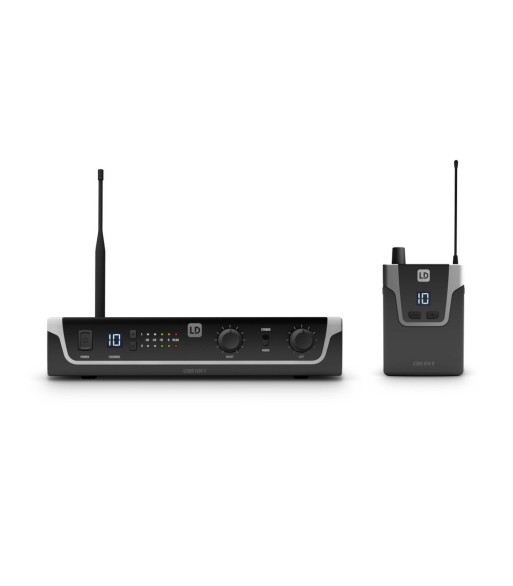

The U300® in-ear transmitters offer a choice of 12 transmission channels and an RF transmission power of 10 mW. They can also be operated in mono or stereo mode. Combo sockets serve as symmetrical XLR and asymmetrical 6.35 mm jack inputs. Left and right input levels can be controlled separately, while two LED chains indicate audio signal strength.

The U300® bodypack receiver has a mini jack socket to connect the earphones as well as displays for channel, stereo mode and low battery status. Running on two AA batteries, it has an operating time of 10 hours. A practical controller allows individual adjustment of the monitoring volume during performance. 19" rack assembly kit included.

Antal

Klar til afsendelse fra fjernlager

LOG IND! Forspørg om prismatch, TILBUD på en eller flere varer

Forbindelse

Beskrivelse
Produktoplysninger

Reliable wireless transmission with a range of up to 100 m
Low-reaching frequency response
12 selectable channels
Choice of stereo or mono mode
Up to 6 systems can be used simultaneously
10-hour bodypack operating time with two AA batteries
Unlimited number of bodypacks can be set to the same transmission frequency
Channel and RF reception displayed on bodypack
Transmitter in rugged metal casing with stereo level display
Removable antenna with BNC connection
19_ rack assembly kit included.

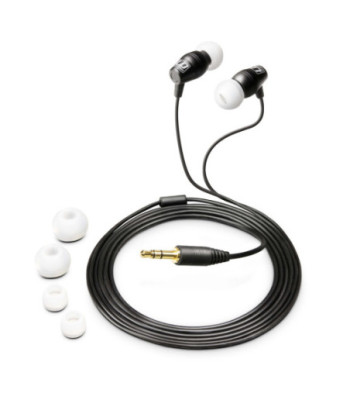

Earphones included

Product type	In-ear Monitoring Accessories
Product type	In-ear Monitoring Accessories
Product type	Headphones
Product type	In-ear Monitoring
Type	Receivers
Type	Transmitters
Transmission frequency range	584 - 608 MHz
Transmission frequency range	584 - 608 MHz
Type	Set
Frequency range	584 - 608 Hz
Channels	12
Frequency response	30 - 20.000
Channels	12
Modes of operation	FM, mono/stereo
Modes of operation	mono/stereo
Impedance	16 Ohm(s)
Transmission method	FM, mono/stereo
Weight	1,51 kg
Frequency response	50 - 16.000
Connection type	3.5 mm TRS
Transmission method	FM, mono/stereo
Rated HF output power	10 mW
Cable length	1.5 m
Total Harmonic Distortion (THD)	0.25 %
Frequency response	50 - 16.000
Signal-to-noise ratio	90 dB
Total Harmonic Distortion (THD)	<0,5%
Audio output	3.5 mm TRS
Minimum connected impedance	16 Ohm(s)
Max. audio output level	100 (@ 16 Ohms load capacity) mW
Max. audio output level	73 (@ 33 Ohms load capacity) mW
Dynamic range	88 dB
Antenna connector	Fixed to housing
Controls	Channel down
Controls	Channel up
Controls	On/off switch
Controls	volume control
Inputs	2
Input connectors	6.3 mm jack
Input connectors	XLR
Input impedance (kOhms)	8.5 kOhm
Indicators	LC display
Indicators	RF (LED)
Weight	0,088 kg
Input sensitivity	-4.5 dbu
Power supply	2 x 1.5 V AA
Operating time	< 10 hours
Width	64 mm
Antenna connector	BNC
Controls	input level
Controls	Mono/stereo switch
Controls	Power On/Off
Height	103 mm
Depth	24 mm
Indicators	LC display
Power consumption	1.7 W
Power supply	12 - 18 V DC
Weight	0,085 kg
Features	battery status LED
Features	incl. batteries
Width	212 mm
Height	43 mm
Depth	123 mm
Weight	0,66 kg
Accessories (included)	19" Rack mount kit
Accessories (included)	BNC-Antenna
Accessories (included)	Power supply
