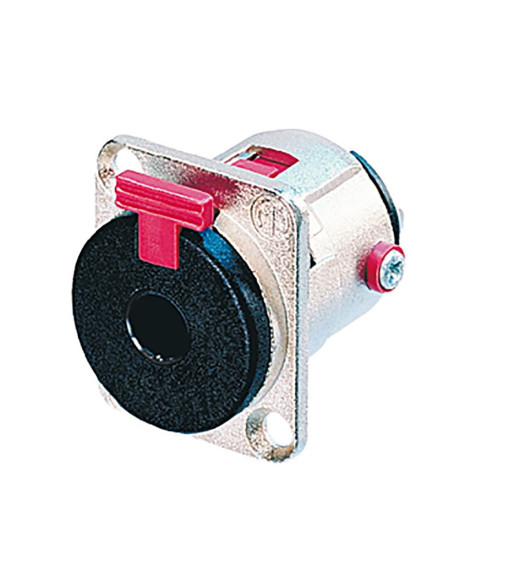

Neutrik Jack TRS chassic connector female Neutrik®

88,00 kr.
Inkl. moms
NJ3FP6C

Locking 1/4" phone jack, D-size shell, nickel metal housing and silver contacts

The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance. Selectable grounding options.

Antal
Klar til afsendelse fra fjernlager

LOG IND! Forspørg om prismatch, TILBUD på en eller flere varer

account_circle Forbindelse
  • Securely locking chassis jack
  • Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
  • Closable grounding options: standard isolated, to get a sleeve/panel connection red isolator on lateral screw must be removed
  • Dimensionally compatible with D Series (31 x 26 mm)
  • Solder terminals

Product typePlugs and Connectors
TypeJack Connectors
Poles3
Genderfemale
Contactssilver plated
Rated current per contact10 A
Connection typesolder contacts
Temperature range70 - -25 °C
Housingdie-cast zinc
Chassis shapeD
Width26 mm
Height31 mm
Depth37 mm
Standards complianceEIA RS 453
Standards complianceIEC 60603-11
Weight0,026 kg
Additional informationin D-type housing
NEUTRIK
NJ3FP6CSB

Produktinformation

Farve
Sort
Kabel: Stik - start
Jack - 6,3mm - Stereo - Hun
Kabel: Stik - slut
Løse ender
Kabel: Stik - Adapter
Metalrør
