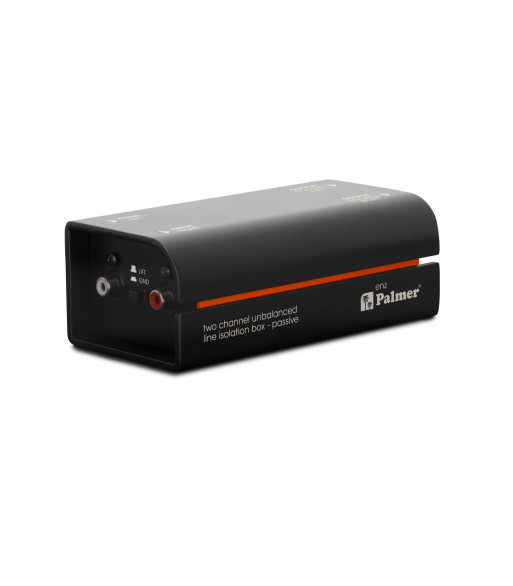

Palmer Two Channel Unbalanced Line Isolation Box

1.189,00 kr.
Inkl. moms
RIVER enz

When connecting a media player or a laptop to a HiFi- or PA system, you often experience noise such as hum and buzz caused by ground loops. With the Palmer enz,

With the Palmer enz, you can be sure that such annoying interference signals do not occur anymore!

The cause of this interference lies mostly in ground potential differences, which result in stray DC currents via the audio lines. The solution is to place a transformer between the two devices to isolate the ground line. Palmer enz has two of these transformers for its two channels. Its inputs and outputs are RCA sockets, which are common for HiFi and consumer equipment. However, the sound quality will also satisfy professionals, since the sound remains unaltered.

This makes the enz Line Isolation Box a useful problem solver for home or car HiFi systems and PA systems from conference rooms to nightclubs. A Line Isolation box simply belongs in every DJ's kit. Whenever there is buzzing and humming, the Palmer enz brings silence with a touch of a button.

Antal
Klar til afsendelse fra fjernlager

  • Eliminates ground loop hum and interfering signals
  • Two channel
  • 2 RCA inputs
  • 2 RCA outputs
  • Galvanic isolation via transformer
  • No loss of sound quality
  • Perfect for HiFi systems, car stereos, presentations and installations
  • No power supply needed
  • Solid casing made of aluminium and steel
  • Incl. rewritable tour label for attachment onto the back of the enz
  • Engineered in Germany

Product typeline isolator
Typepassive
Channels2
Transformer isolatedYes
Number of inputs2
Input typeunbalanced
Input connectorsRCA
Number of outputs2
Output typeUnbalanced
Output connectorsRCA
Ground lift switchYes
HousingAluminium continuous casting
Dimensions (W x H x D)50 x 140 x 68 mm
Weight0,42 kg
Ambient temperature (in operation)- 20 - 70 °C
Relative Humidity< 80% (non-condensing)
Accessories (included)Inscription label (tour label)
Accessories (included)rubber feet

Audio

Max. input level (< 1% THD, 20 Hz)+ 14 dBu
Max. input level (< 1% THD, 1 kHz)+32 dBu
Frequency response (±1dB, relative 1kHz)5 Hz - 20 kHz
Input impedance (1 kHz, Setting: 0 dB Pad, THRU)16 kOhm
Output impedance (1 kHz, Setting : 0 dB Pad, THRU)1,3 kOhm
THD (30 Hz, +4 dBu, unity, unweighted)< 0.15 %
THD (1 kHz, +4 dBu, unity, unweighted)< 0,003 %
IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu)< 0,003 %
Transformer ratio1 : 1
