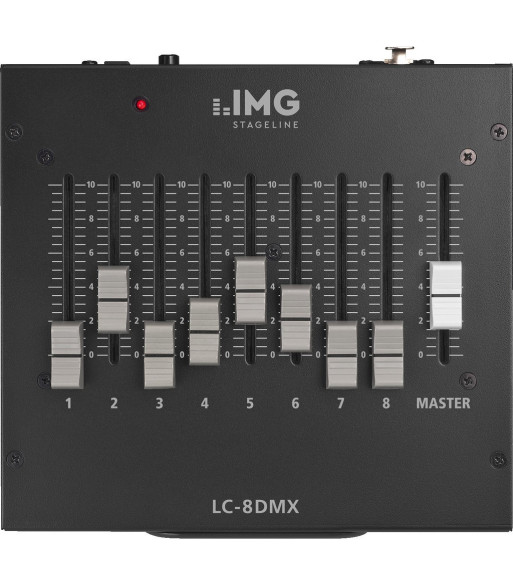

IMG STAGELINE DMX controller - LC-8DMX

1.249,00 kr.
Inkl. moms
Compact DMX controller, for controlling light effect units with DMX512 interface.
  • User-friendly and simple operation
  • 8 DMX channels
  • 8 channel faders
  • 1 master fader
  • Start address adjustable via BCD coding switch (decimal)
  • Can be used as a DMX tester
  • Metal housing
  • Connections: 1 x 3-pole XLR, 1 x low-voltage jack
  • Power is provided via enclosed power supply or 9 V battery (not supplied)
  • Dimensions: 180 x 68 x 175 mm
  • Weight: 975 g
Antal
Klar til afhentning // afsendelse fra eget lager

Type DMX controller
DMX interface DMX-512
No. of DMX channels 8
No. of DMX outputs 1
Selectable DMX polarity -
No. of channel faders 8
Master fader 1
No. of chases -
No. of cues -
No. of scenes -
No. of device levels -
No. of devices -
No. of overrides -
Number of colours -
No. of gobos -
Pre-programmed motion sequences -
Galvanic isolation -
Blackout function -
Password protection -
Music-controlled -
Patchable -
Storage capacity -
Special features can also be used as a DMX tester
jog wheels -
MIDI -
USB -
SD card -
Display -
Suitable for -
Power supply encl. plug-in power supply,
9 V batt. (not supplied)
Operating voltage -
Current consumption -
Dimensions 180 x 68 x 175 mm
Width 180 mm
Height 68 mm
Depth 175 mm
Rack spaces, RS -
Admiss. ambient temp. 0-40 °C
Weight 975 g
Connections 1 x 3-pole XLR (DMX out)
