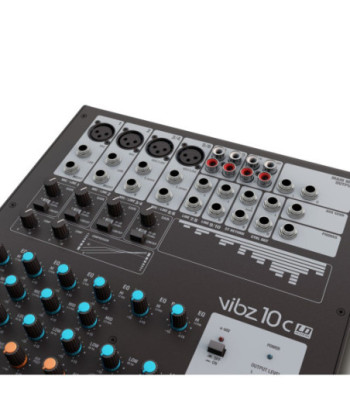

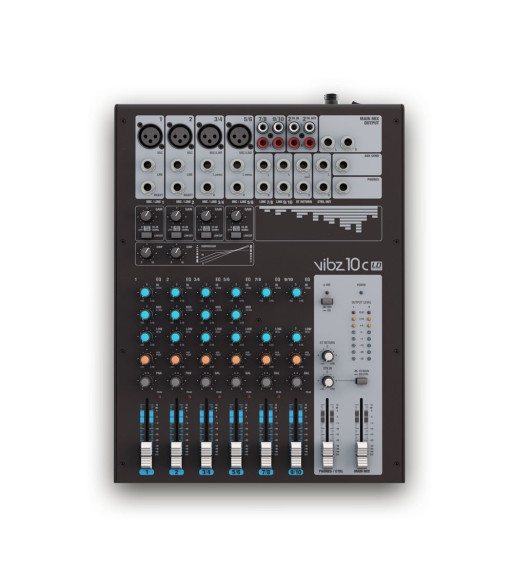

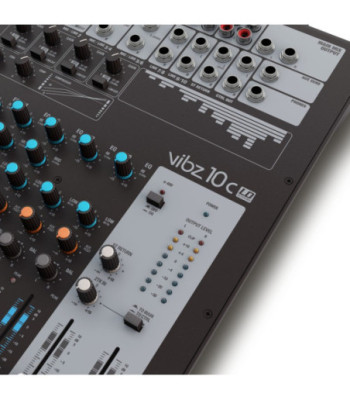

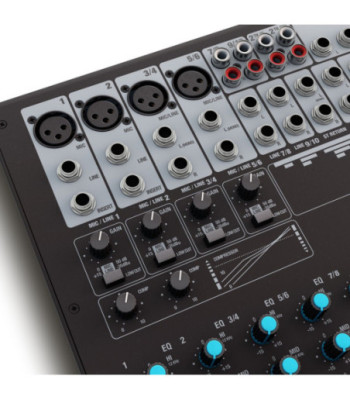

LD Systems 10 Channel Mixing Console with Compressor

1.859,00 kr.
Inkl. moms

VIBZ 10 C

The VIBZ 10 is a versatile mixer with four balanced microphone inputs featuring high quality preamplifiers, a low-cut filter and switchable phantom power. Two microphone inputs are equipped with inserts for individual signal processing, two more can alternatively be used as stereo line channels.

For an effective sound adjustment, the VIBZ 10 has very precise 3-band EQs with conveniently selected mids; two stereo channels can be adjusted with 2-band EQs. The built-in compressor can be continuously adjusted for effective dynamics processing.

The master section of the mixer has an effects loop, adjustable monitor outputs and a headphone jack. The VIBZ 10 also has inputs and outputs for recording and playback devices; the input signal can be set on the master or monitor output and the volume adjusted.

With its transparent, detailed sound and easy operation, VIBZ 10 is the perfect choice for small bands, installations and home recording or sub mixer applications. It comes with an external power supply that can be tightly secured to the mixer. A foot switch for the effects section and an adapter for mounting the VIBZ 10 on microphone stands are available as accessories.

Antal
Klar til afhentning // afsendelse fra eget lager

LOG IND! Forspørg om prismatch, TILBUD på en eller flere varer

account_circle Forbindelse
  • 10-channel mixer with 4 microphone channels
  • 4 stereo line inputs
  • Effective 3-band EQ
  • 2 stereo channels with 2-band EQ
  • Sliding adjustable compressor
  • Master, Monitor and headphone outputs
  • Securely fastening external power supply

Product type Mixers
Type Live
Channels 10

Mono Channels:

Mono Mic and Line Input Channels 4
Mono Mic input connectors 6.3 mm TRS
Mono Mic input connectors XLR
Channel Inserts 2
Channel Insert Connectors 6.3 mm TRS
Mono Mic Input Type Electronically balanced
Mono Mic Input Frequency Range 10 - 45000 Hz
Amplification Range mono Mic Input 0 - 50 dB
Mono Mic Input Input THD-N 0.0058%
Mono Mic Input Impedance 4k Ohm(s)
Mono Mic Input S/N Ratio 113 dB
Mono Line Input Type Electronically balanced
Mono Line Input Frequency Range 10 - 45000 Hz
Amplification Range mono Line Input 0 - 50 dB
Mono Line Input Input THD-N 0.0045 %
Mono Line Input Impedance 21k Ohm(s)
Mono Line Input S/N Ratio 116 dB
Mono Channel Equalizer High +/- 15 dB @ 12000 Hz
Mono Channel Equalizer Mid +/- 15 dB @ 2500 Hz
Mono Channel Equalizer Low +/- 15 dB @ 80 Hz
Controls Mono Mic and Line Input Channels 3-band EQ (High, Mid, Low)
Controls Mono Mic and Line Input Channels AUX (DFX) Post
Controls Mono Mic and Line Input Channels Channel Volume
Controls Mono Mic and Line Input Channels Compressor
Controls Mono Mic and Line Input Channels Gain
Controls Mono Mic and Line Input Channels Low Cut (75 Hz)
Controls Mono Mic and Line Input Channels pan
Phantom power 48 V DC switchable

Stereo Channels:

Stereo Line Input Channels 4
Stereo Line Input Connectors 6.3 mm TRS
Stereo Line Input Type Electronically balanced
Stereo Line Input Type Unbalanced
Stereo Line Input Frequency Range 10 - 45000 Hz
Amplification Range stereo Line Input 0 - 50 dB
Stereo Line Input Input THD-N 0.0045 %
Stereo Line Input Impedance 3,7k Ohm(s)
Stereo Line Input S/N Ratio 116 dB
Stereo channel equalizer treble +/- 15 dB @ 12000 Hz
Stereo channel equalizer mids +/- 15 dB @ 2500 Hz
Stereo channel equalizer bass +/- 15 dB @ 80 Hz
Controls Stereo Line Input Channels 2-band EQ (High,Low)
Controls Stereo Line Input Channels 3-band EQ (High, Mid, Low)
Controls Stereo Line Input Channels AUX Post
Controls Stereo Line Input Channels Balance
Controls Stereo Line Input Channels Channel Volume
Controls Stereo Line Input Channels Gain
Controls Stereo Line Input Channels Low Cut

Main Section:

AUX / Effects Send Channels 1
AUX / Effects Send Connectors 6.3 mm stereo jack unbalanced
Stereo AUX Return Channels 1 x stereo
Stereo AUX Return Connectors 6.3 mm TRS
Stereo Tape Out Channel 1 x stereo
Stereo Tape Out Connectors 2 x RCA (Cinch)
Stereo Tape In Channel 1 x stereo
Stereo Tape In Connenctors 2 x RCA (Cinch)
Unbalanced stereo Main Outputs 1
Unbalanced stereo Main Output Connections 6.3 mm TRS
Unbalanced Stereo Main Out Impedance 120 Ohm(s)
Max. Unbalanced Stereo Main Out Level 20 dBu
Stereo Control Room Out 1
Stereo Control Room Out Connectors 6.3 mm TRS
Headphones ouput 1
Headphones outputs 6.3 mm TRS
Digital Effects Processor No
Main section controls 2-track Assignment (Main, Contr. Room)
Main section controls 2-track In Volume
Main section controls Master Volume
Main section controls Phantom Power
Main section controls Phones / Control Room Volume
Main section controls Stereo Return Volume
Indicators Phantom Power
Indicators Power
Power supply 18V DC - 1 A, External PSU
Power supply 230 V
Width 265 mm
Height 78 mm
Depth 352 mm
Weight 2,3 kg
LD Systems
LDVIBZ10C
1 Enhed
