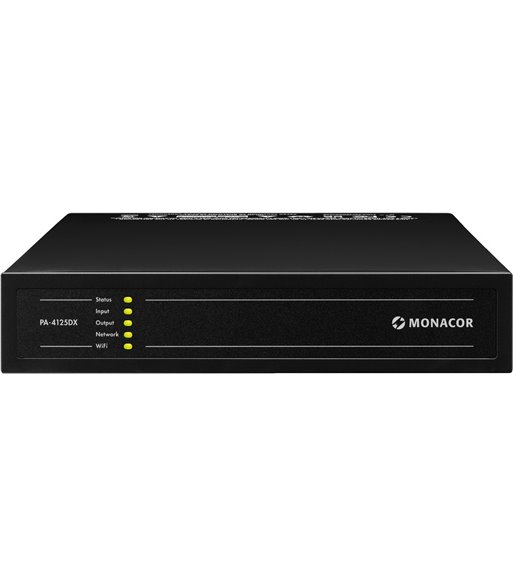

MONACOR - PA-4125DX

7.079,00 kr.
Inkl. moms
4-zone multifunctional amplifier, 4 x 125 W, 2 x 250 W
4-zone multifunctional amplifier,;class D technology with DSP and professional features for general multi-room PA applications.

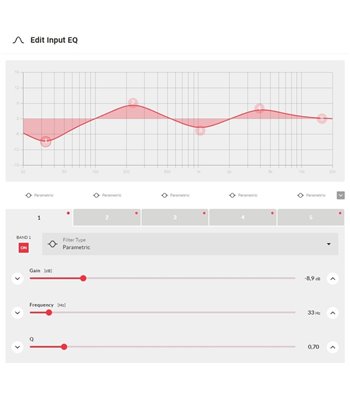

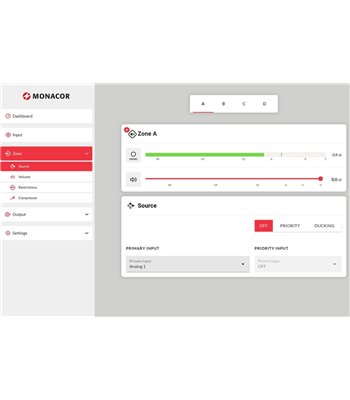

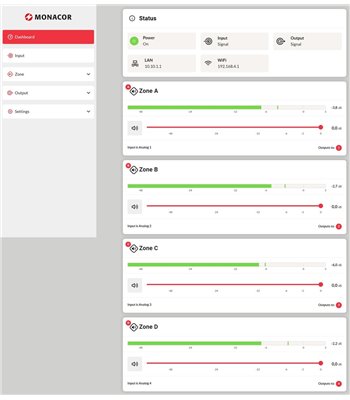

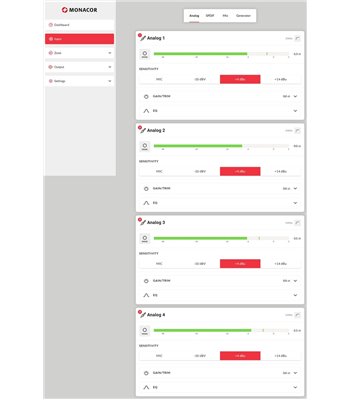

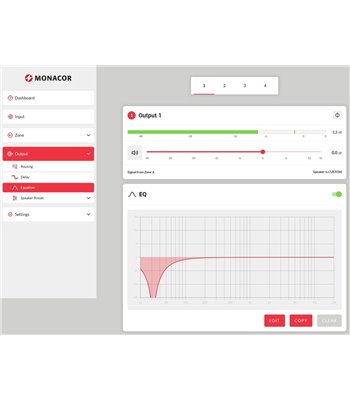

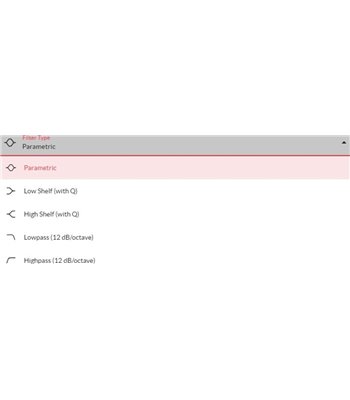

Clearly arranged graphical user interface HTML5 with extensive functions. Convenient operation via web browser regardless of the operating system used by the end-user device (PC, Mac, iOS, Android, etc.).;#4 x 125 W per zone (4/8 Ω) or 2 x 250 W (100 V);#100 V or 4/8 Ω operation;#4 analogue inputs mic/line via plug-in screw terminal (bal.) or RCA jacks;#1 digital input/output via S/PDIF RCA jacks;#4 outputs (4/8 Ω) or 2 zone outputs (100 V) via plug-in screw terminal;#GPIO interface for remote volume control and standby;#Network connection via LAN or WLAN;#Convenient operation and configuration via user interface HTML5;#High-pass/low-pass filter with various filters;#Parametric equalizer;#Output with separate FIR filters;#Speaker matching: 10 ms;#Switchable output phase;#Adjustable compressor/limiter;#Adjustable delay;#Mix inputs;#Talkover with priority routing;#Built-in sine wave noise generator;#Parametric 5-band equalizer for input;#Protected against short circuit, DC voltage overload, undervoltage, excess temperature and overload;;Note: after initially switching on the device, firmware must be updated to minimum required version 1.6.4.
Antal
Klar til afsendelse fra fjernlager

Peak output power 500 W
Power rating 500 W
Power rating at 4 Ω 4 x 125 W
Power rating at 8 Ω 4 x 125 W
Power rating at 100 V 2 x 250 W
Channels 5
Zones 4
Inputs 1.2 V, bal. (line), 1.9 mV, bal. (mic)
Integrated limiter yes
Equalizer bass via DSP
Equalizer midrange via DSP
Equalizer treble via DSP
S/N ratio > 106 dB
THD < 0.05%
Power supply ˜ 100-240 V/50-60 Hz/150 W
Mains voltage ~ 100-240 V
Mains frequency 50-60 Hz
Power consumption, operation 150 W, 1/8 output power
Power consumption, standby < 0.5 W
Admiss. ambient temp. 0-40 °C
Width 220 mm
Height 44 mm
Depth 320 mm
Rack units, RU 1
Weight 1.95 kg
Connections 4 x RCA line

plug-in screw terminal (mic/line)

2 x RCA (digital in/out)

plug-in screw terminal GPIO

plug-in screw terminal speakers

1 x RJ45 network connection

Packaging dimensions (W x H x L) 0.3 x 0.09 x 0.5 m
Gross weight 2.8 kg
Net weight 2.16 kg
EAN code 4007754424577
Net weight 2.16 kg
PA-4125DX
