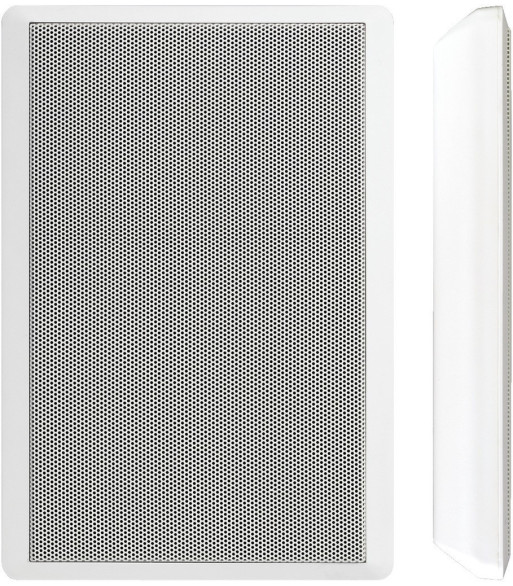

MONACOR 100V højttaler flad - ESP-134/WS
search
  • MONACOR 100V højttaler flad - ESP-134/WS

MONACOR 100V højttaler flad - ESP-134/WS

969,00 kr.
Inkl. moms
These wall speakers impress by an extraordinarily flat design which is only achieved by applying the latest NEODYMIUM magnetic systems.
The ESP-130... speaker systems already provide a very pleasant and complete sound and yet, with a total depth of only 38 mm, they are of such a flat design, that they are just as unobtrusive on the wall as a flush-mount speaker.
PA wall speaker
  • 100 V line technique via audio transformer with 3 W and 6 W power taps or 4 _ operation (20 W)
  • 2-way system with neodymium bass-midrange speaker and dome tweeter
  • White plastic cabinet with protective metal grille
  • Slimline design for unobtrusive wall mounting

Antal
Klar til afsendelse fra fjernlager

100 V1
Low-impedance1
Active/passivepassive
Transmission technology100 V or low-impedance
Total output power-
Power rating (RMS)6/3 W (100 V)

20 W (4 _)

Total power rating-
Power rating (RMS)6/3 W
Impedance4 _
Frequency range80-18,000 Hz
THD-
S/N ratio-
Input signal-
System2-way
Full range speaker-
Bass speaker-
Midrange speaker-
Tweeter-
Number of speakers2
Speaker size130
SPL91 dB/W/m
Max. rated SPL104 dB
Radiation angle/beam angleH: 100°/V: 60°
Radiation angle, horizontal100°
Radiation angle, vertical60°
Features-
Housing materialplastic
Colourwhite
Mounting deviceattachment via screw
Protected against ball rebound-
Protection class-
Admiss. ambient temp.0-40 °C
Power supply-
Dimensions185 x 275 x 38 mm
Width185 mm
Height275 mm
Depth38 mm
Weight1.25 kg
Inputsspring-loaded terminal
Outputs-
Replacement voice coil-
Other features-
Accessories-
Packing dimensions (W x H x L)0.075 x 0.225 x 0.315 m
Gross weight1.375 kg
Net weight1.255 kg
ESP-134/WS
