IMG STAGELINE 15´´ højttaler - SP-15A/402PA

2.049,00 kr.
Inkl. moms

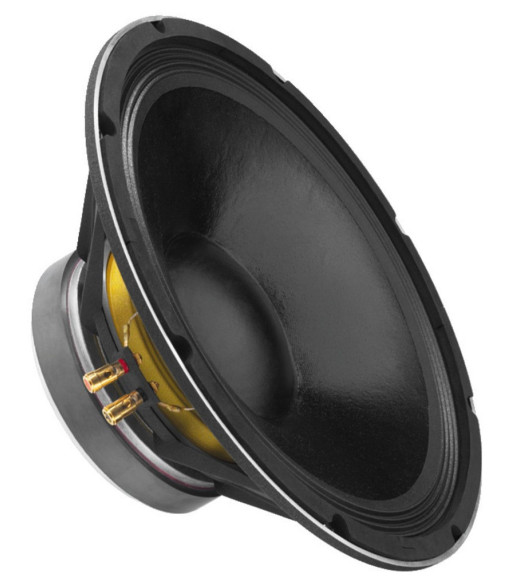

Professional PA bass speaker, 400 W, 8 _
  • Of very high power capability
  • 38 cm (15") professional bass speaker of long excursion
  • Diecast basket
  • Cone with water-repellent coating
  • Very neat workmanship with front-facing basket
  • Wide frequency response
  • High efficiency
  • Excellent deep bass reproduction
  • Drive system with drilled pole core and additional magnet for optimising the magnetic field and impedance linearisation
  • For bass-reflex cabinets of medium size from 80 litres on
  • For all kinds of professional and semiprofessional PA applications
Antal
Klar til afsendelse fra fjernlager

Impedance (Z) 8 _
Line technique -

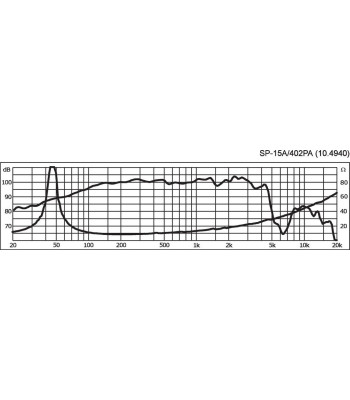

Frequency range f3-3,000 Hz
Resonant frequency (fs) 36 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 400 W
Peak music power output 800 W
Sensitivity 100 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal
Radiation angle, vertical
Suspension compl. (Cms) 0.22 mm/N
Moving mass (Mms) 87 g
Mech. Q factor (Qms) 7.45
Electr. Q factor (Qes) 0.33
Total Q factor (Qts) 0.31
Equivalent volume (Vas) 235 l
DC resistance (Re) 6.5 _
Force factor (BxL) 19.9 Tm
Voice coil induct. (Le) 0.9 mH
Voice coil diameter Ø 100 mm
Voice coil former Kapton
Linear excursion (XMAX) ±5 mm
Eff. cone area (Sd) 881 cm2
Magnet weight 2.3 kg
Magnet diameter Ø 190 mm
Mounting cutout Ø 350 mm
Mounting depth -
Mounting hole diameter Ø 370 mm
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 390 mm x 158 mm
Outside diameter 390 mm
Width 390 mm
Height -
Depth 158 mm
Protective class
Admiss. ambient temp. 0-40 °C
Weight 7.74 kg
Sales unit 1
Type of speaker
IMG STAGELINE
SP-15A/402PA
