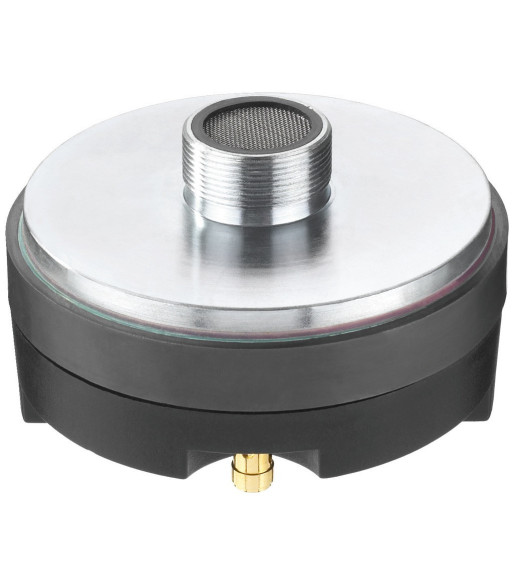

Horn driver - MRD-44PA MONACOR
search
  • Horn driver - MRD-44PA MONACOR
  • Horn driver - MRD-44PA MONACOR

MONACOR Horn driver - MRD-44PA

399,00 kr.
Inkl. moms
PA horn driver, 45 W, 8 _
  • 35 mm (1 3/8 ") standard thread
  • Component of the speakers PAB-115MK2 and PAK-115MK2
  • Matching replacement voice coil PAB-115/VC available at option
  • Suitable for horns MRH-83, MRH-170 and MRH-80
Antal
Klar til afsendelse fra fjernlager

Impedance (Z) 8 _
Line technique -

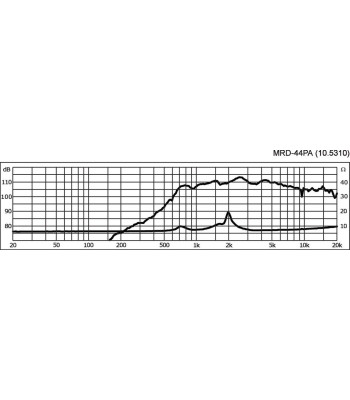

Frequency range fx-20,000 Hz
Resonant frequency (fs) 2 kHz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 3,500 Hz
Power rating 45 W
Peak music power output 90 W
Sensitivity 105 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal
Radiation angle, vertical
Suspension compl. (Cms) -
Moving mass (Mms) -
Mech. Q factor (Qms) -
Electr. Q factor (Qes) -
Total Q factor (Qts) -
Equivalent volume (Vas) -
DC resistance (Re) -
Force factor (BxL) -
Voice coil induct. (Le) -
Voice coil diameter Ø 44.5 mm
Voice coil former -
Linear excursion (XMAX) -
Eff. cone area (Sd) -
Magnet weight -
Magnet diameter Ø 110 mm
Mounting cutout dep. on horn
Mounting depth dep. on horn
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 116 mm x 70 mm
Outside diameter Ø 116 mm
Width Ø 116 mm
Height -
Depth 70 mm
Protective class
Admiss. ambient temp. 0-40 °C
Weight 1,472 kg
Sales unit 1
Type of speaker
MRD-44PA
