MONACOR 4´´ højttaler - SP-4/60PRO

248,00 kr.
Inkl. moms

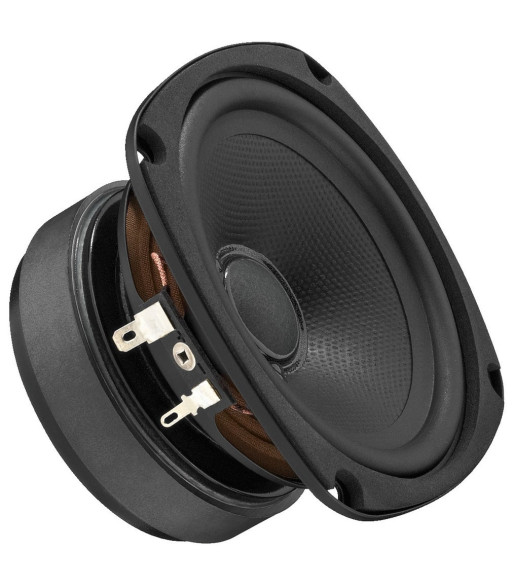

PA midrange speaker, 30 W, 8 _
  • 10 cm (4") PA midrange speaker
  • Midrange speaker from the L-RAY/1000
  • Very linear and wide frequency range
  • Excellent sound and dynamic characteristics
  • Due to a great linear excursion for a midrange system, very low crossover frequency at subwoofer systems possible
  • Ideally suited for small PA systems, column speakers and also as a hi-fi midrange speaker
HOBBY HiFi 01/2013
"Impressively low THD values for a crystal-clear reproduction of the midrange."

HiFi-Selbstbau 07/2012
"Attractive price, unobtrusive, yet very good. This perfectly describes the midrange speaker SP-4/60PRO from IMG Stage Line. You can often be more successful when using your head instead of excessive material, ... The staff from MONACOR know exactly why they accommodate two of the SP-4/60PRO in the PA combination L-RAY/1000. We have always been curious as to why they only used a 10 cm speaker - but now we know why: the speaker is capable of a powerful bass reproduction without any kind of hesitation. They have done EVERYTHING right."
Antal
Klar til afhentning // afsendelse fra eget lager

Impedance (Z) 8 _
Line technique -

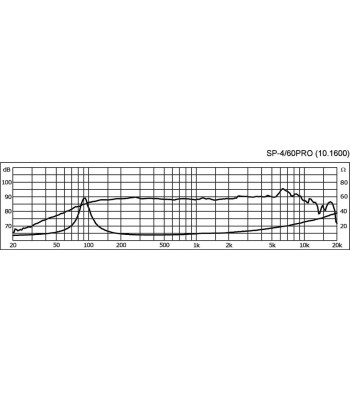

Frequency range f3-10,000 Hz
Resonant frequency (fs) 92 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 30 W
Peak music power output 60 W
Sensitivity 90 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal
Radiation angle, vertical
Suspension compl. (Cms) 0.47 mm/N
Moving mass (Mms) 6.3 g
Mech. Q factor (Qms) 5.35
Electr. Q factor (Qes) 0.67
Total Q factor (Qts) 0.60
Equivalent volume (Vas) 3.04 l
DC resistance (Re) 6.76 _
Force factor (BxL) 5.85 Tm
Voice coil induct. (Le) 0.3 mH
Voice coil diameter Ø 25 mm
Voice coil former Kapton
Linear excursion (XMAX) ± 2.3 mm
Eff. cone area (Sd) 68 cm2
Magnet weight 370 g
Magnet diameter Ø 86 mm
Mounting cutout Ø 103 mm
Mounting depth 57.5 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions 113 x 113 x 63 mm
Outside diameter -
Width 113 mm
Height 113 mm
Depth 63 mm
Protective class
Admiss. ambient temp. 0-40 °C
Weight 0.9 kg
Sales unit 1
Type of speaker
SP-4/60PRO
