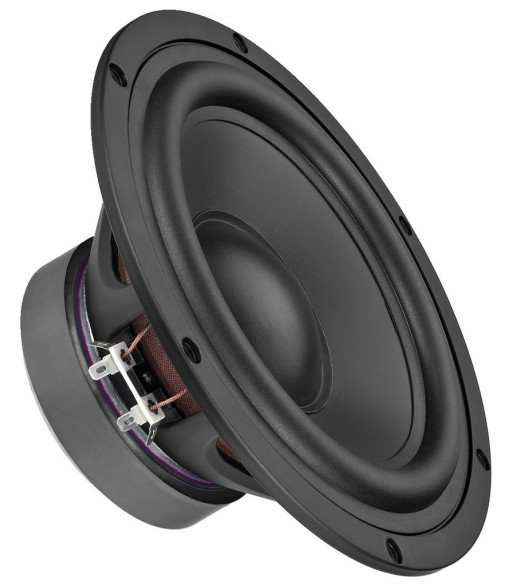

MONACOR 8´´ højttaler - SPH-8M

819,00 kr.
Inkl. moms
Hi-fi bass speaker, 100 W, 8 _
  • Hi-fi bass speaker of excellent workmanship
  • Dampened low-resonance polypropylene cone
  • Robust diecast aluminium basket of an elegant design with 6-hole screw connection
  • Magnet system with drilled pole core
  • Very well-suited for bass-reflex and closed speaker systems
Hobby HiFi 06/2011
"Perfectly linear and well-balanced. Of neat workmanship, an excellent bass-midrange speaker for 2-way applications."
Antal
Klar til afsendelse fra fjernlager

Impedance (Z) 8 _
Line technique -
Frequency range f3-2,500 Hz
Resonant frequency (fs) 35 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 100 W
Peak music power output 150 W
Sensitivity 89 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) 0.71 mm/N
Moving mass (Mms) 27 g
Mech. Q factor (Qms) 2.26
Electr. Q factor (Qes) 0.50
Total Q factor (Qts) 0.41
Equivalent volume (Vas) 44 l
DC resistance (Re) 6.5 _
Force factor (BxL) 9.01 Tm
Voice coil induct. (Le) 0.78 mH
Voice coil diameter Ø 38 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 4.5 mm
Eff. cone area (Sd) 240 cm2
Magnet weight 790 g
Magnet diameter Ø 110 mm
Mounting cutout Ø 180 mm
Mounting depth 91 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 222 mm x 97 mm
Outside diameter Ø 222 mm
Width Ø 222 mm
Height -
Depth 97 mm
Protective class -
Admiss. ambient temp. 0-40 °C
Weight 2.2 kg
Sales unit 1
Type of speaker 22 cm
SPH-8M
