MONACOR 4´´ mellemtone - MSH-116/4

439,00 kr.
Inkl. moms

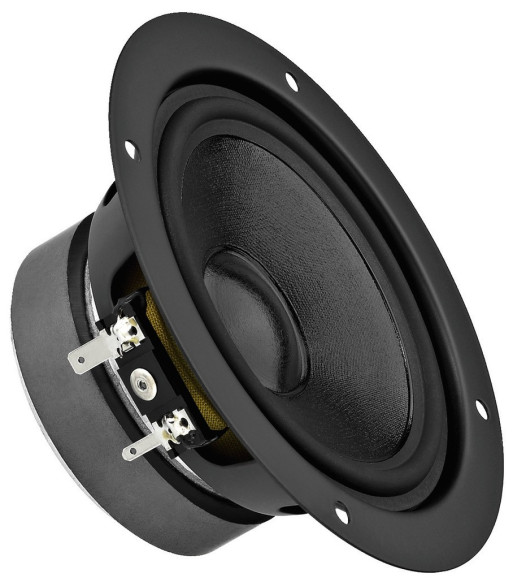

Hi-fi midrange speaker, 40 W, 4 _
  • High-end technology
  • Coated special cone
  • Dust cap with high damping
  • Extra flat basket (no need for recessed installation)
  • Best possible linearity
  • Perfect mass-drive ratio with a wide bandwidth
  • For a sound of the extra class
HOBBY HiFi 03/2015
"The MSH-116/4 impresses with a perfect sound, a surprisingly wide bandwidth and a high efficiency - a really great midrange speaker."
Antal
Klar til afsendelse fra fjernlager

LOG IND! Forspørg om prismatch, TILBUD på en eller flere varer

account_circle Forbindelse
Impedance (Z) 4 _
Line technique -
Frequency range fx-10,000 Hz
Resonant frequency (fs) 95 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 300/5,000 Hz
Power rating 40 W
Peak music power output 120 W
Sensitivity 91 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal
Radiation angle, vertical
Suspension compl. (Cms) 0.62 mm/N
Moving mass (Mms) 4.6 g
Mech. Q factor (Qms) 2.38
Electr. Q factor (Qes) 0.48
Total Q factor (Qts) 0.40
Equivalent volume (Vas) 2.7 l
DC resistance (Re) 3.2 _
Force factor (BxL) 4.3 Tm
Voice coil induct. (Le) 0.18 mH
Voice coil diameter 25 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 1 mm
Eff. cone area (Sd) 55 cm2
Magnet weight 240 g
Magnet diameter Ø 72 mm
Mounting cutout Ø 101 mm
Mounting depth 54 mm
Mounting hole diameter Ø 112 mm
Hole spacing X-axis 79 mm
Hole spacing Y-axis 79 mm
Dimensions Ø 124 mm x 55 mm
Outside diameter Ø 124 mm
Width Ø 124 mm
Height -
Depth 55 mm
Protective class
Admiss. ambient temp. 0-40 °C
Weight 0.6 kg
Sales unit 1
Type of speaker
MSH-116/4
