Neutrik Network plug Neutrik etherCON® - Cat.6a

229,00 kr.
Inkl. moms

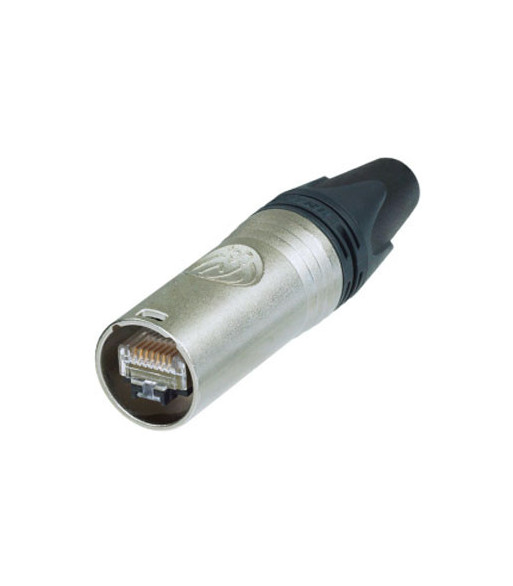

The set NE8MX6 consists of a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A compliant RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and wire gauge of AWG24 - AWG22/1 (solid) or AWG24 - AWG22/7 (stranded).

Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

Antal
Klar til afsendelse fra fjernlager

  • Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
  • PoE+ compliant according to 802.3at Type2
  • IP65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
  • Rugged latch lock system million fold proven
  • Intermateable with the existing etherCON CAT5 range
  • Unique Neutrik chuck-type strain relief

Product typePlugs and Connectors
TypeOther Plugs and Connectors
Poles8
Gendermale
Contactsgold plated
Connection typecables
HousingZinc die-cast
Width76.5 mm
Height19.05 mm
Depth19.05 mm
Weight0,02 kg
NEUTRIK
NE8MX6

Produktinformation

Farve
Sølv
Kabel: Stik - start
Netværkstik - RJ-45 - Han
Kabel: Stik - slut
Løse ender
Kabel: Stik - Adapter
Plastikrør
Kabel: Type
Kabel: Netværkskabel - CAT 6
