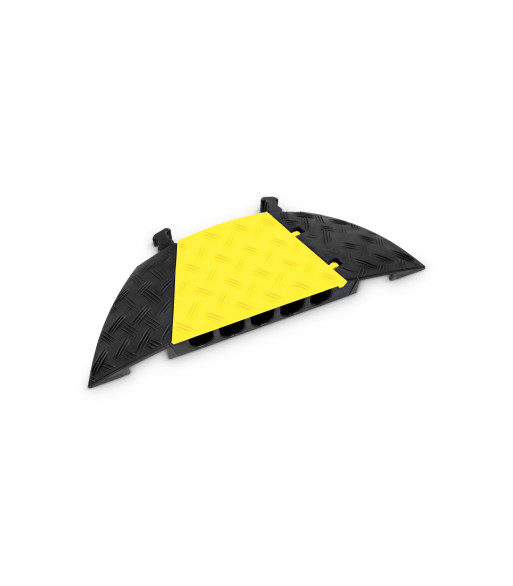

Defender Adapter 5 to 3 channels - female - heavy duty - height 5.5cm

1.129,00 kr.
Inkl. moms

Adapter for connecting the MIDI 5 to the MINI. Optimum transition.


MIDI 5, 5 medium-sized cable ducts - The universal solution for almost all applications

The particularly versatile and safe DEFENDER® MIDI Cable protector features a flat profile, a load capacity of 5 tonnes over an area of 25 x 30 cm, integrated connectors and handles and the option of combining straight elements, 45° curves and end pieces to create a wide variety of continuous cable routes. Five 34 x 36 mm cable ducts allow individual sound, light and power cables to be laid safely. DEFENDER® MIDI Cable protectors are suitable for a wide variety of applications, for example heavy goods traffic, construction sites, warehouses, shopping centres, trade fairs, exhibitions, carnivals, music events and broadcast studios.

Mark your Cable protectors! From an order quantity of just 30 pieces per model, you have the option of customising all DEFENDER® Cable protectors with your company logo. The corresponding format template is available in the download area above. Please contact us.

Antal
Klar til afsendelse fra fjernlager

  • Adapter suitable for the MIDI and MINI series
  • perfect transition, no height difference
  • Channels 1 and 2 as well as channels 4 and 5 are merged
  • Heavy-duty, non-slip all-round Cable protector made of black, recyclable polyurethane with integrated carrying handles
  • Yellow polyurethane lid with high warning effect and secure locking mechanism
  • Self-cleaning lid hinge
  • Load capacity approx. 5 tonnes / 25 x 30 cm
  • Fire protection class B2 (DIN 4102)
  • Resistant to oil, acid, petrol and short-term contact with solvents
  • Reliable cable and personal protection for indoor and outdoor use
  • TÜV Süd certified

General

MaterialTPU (Thermoplastic polyurethane)
Surface structureRibbed
ColourBlack
Lid colourYellow
Maximum load (on 25 x 30 cm)5 t
Max. Passing speed7 km/h
Chemical resistancePetrol, Solvents (short-term contact), Oil
Hardness range (±4 Shore A)88 Shore A
ShapeRound

Cable ducts

Quantity5
Cable ducts size (W x H)34 mm x 36 mm
Duct length (effective length)870 mm

Environmental

Fire protection class per DIN 4102-1B2
Inflammability (UL 94)V-2, HB
Ambient temperature-30 - 60 °C

Dimensions & weight

Length20.5 cm
Width50.4 cm
Height5.5 cm
Weight2.25 kg
Defender
85320F
